52000 Series Thrust Ball Bearings

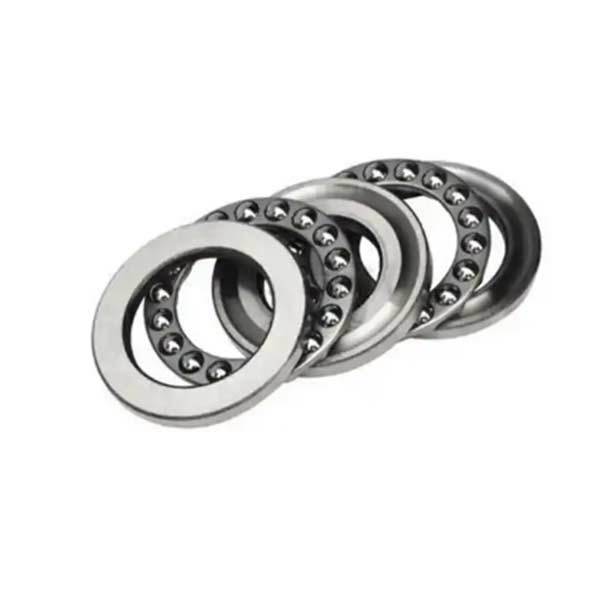

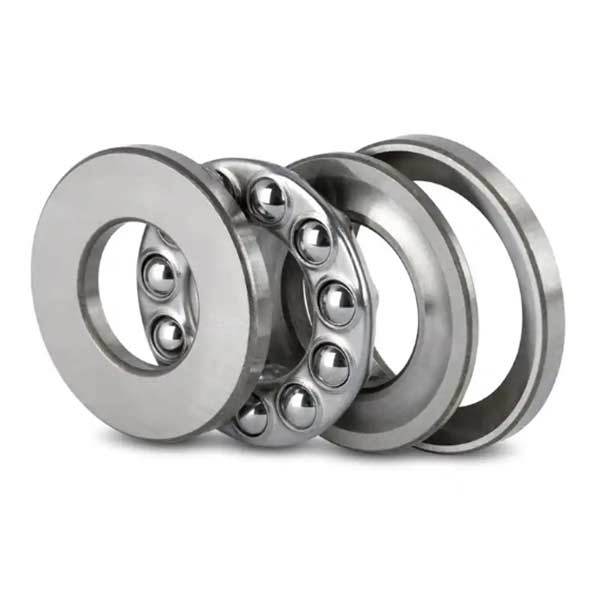

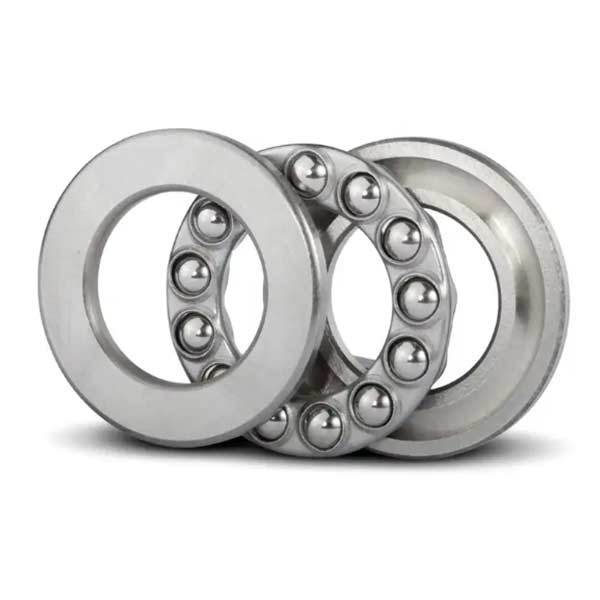

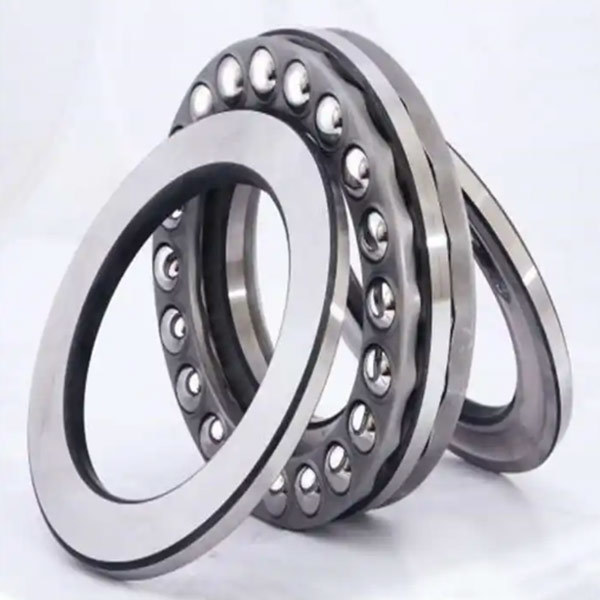

The thrust ball bearing is designed to withstand thrust load at high speed, and is composed of washer-like rings with ball rolling raceway groove. Because the collar is cushion type, the thrust ball bearing is divided into two types: flat-bottomed cushion type and self-aligning spherical cushion type. In addition, this kind of bearing can bear axial load, but cannot bear radial load.

Category：

Thrust Ball Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Product parameter

Bearing Number	Dimensions （mm）
52202	15(10)×32×22
52204	20(15)×40×26
52205	25(20)×47×28
52206	30(25)×52×29
52207	35(30)×62×34
52208	40(30)×68×36
52209	45(35)×73×37
52210	50(40)×78×39
52211	55(45)×90×45
52212	60(50)×95×46
52213	65(55)×100×47
52214	70(55)×105×47
52215	75(60)×110×47
52216	80(65)×115×48
52217	85(70)×125×55
52218	90(75)×135×62
52220	100(85)×150×67
52220M
52222	110(95)×160×67
52224	120(100)×170×68
52224M
52226	130(110)×190×80
52228M	140(120)×200×81
52228	140(120)×200×81
52230	150(130)×215×83
52230M	150(130)×215×89
52232	160(140)×225×90
52232M
52234M	170(150)×240×97
52234	170(150)×240×97
52236	180(150)×250×98
52236M
52238	190(160)×270×109
52238J	190(160)×270×109
52240	200(170)×280×109
52244	220×300×110
52305	25(20)×52×34
52306	30(25)×60×38
52307	35(30)×68×44
52308	40(30)×87×49
52309	45(35)×85×52
52310	50(40)×95×58
52311	55(45)×105×64
52312	60(50)×110×64
52313	65(55)×115×65
52314	70(55)×125×72
52315	75(60)×135×79
52316	80(65)×140×79
52317	85(70)×150×87
52318	90(75)×190×110
52320	100(85)×170×97
52322	110(95)×1490×110
52322M
52324	120(100)×210×123
52324M
52326M	130(110)×225×130
52326	130(110)×225×130
52328	140(120)×240×140
52330	150(130)×250×140
52330M
52332	160(140)×270×153
52334	160(140)×270×153
52336	180(150)×300×165
52338	190×320×183
52340	200×340×192
52405	25(15)×60×45
52406	30(20)×70×52
52407	35(25)×80×59
52408	40(30)×90×65
52409	45(35)×100×72
52410	50(40)×110×78
52411	55(45)×120×87
52411M
52412	60(50)×130×93
52413	65(50)×140×101
52414	70(55)×150×107
52414M
52415	75(75)×160×115
52416	80(68)×170×201
52417	85(65)×180×128
52417M
52418	90(70)×190×135
52420M	100(80)×210×150
52420	100(80)×210×150
52422	110(90)×230×166
52422M
52424	120×250×177
52426	130(100)×270×192
52428	140(110)×280×195
52430	150(120)×300×209
52432	160×320×226
52434	170×340×236
52436	180×360×245
527/49	49(41)×78×63.41
527/88	88(74)×118×69.4
527/340	340(300)×400×80
52780	400(350)×440×70
527/615	615(570)×700×90
527/940	940(865)×1030×110
527/950.8M	950.8(845)×1030×110
527/950.8/YB2	950.8(845)×1030×110
527/950.8/YA3	950.8(845)×1030×120
527/1181	1181(1070)×1280×145
527/1226	1226×1360×200
527/1300	1300×1600×235
527/1520	1520(1420)×1720×270
54226U	130(100)×195×96
54307U	37(30)×72×52
54320U	100(85)×175×115
54324MU	120(100)×220×143
54324U	120(100)×220×143
48701(48910)	50(28.5)×108×79
54320	100(85)×170×105.4
54410	50×110×83.2
