Harmonic reducer bearing

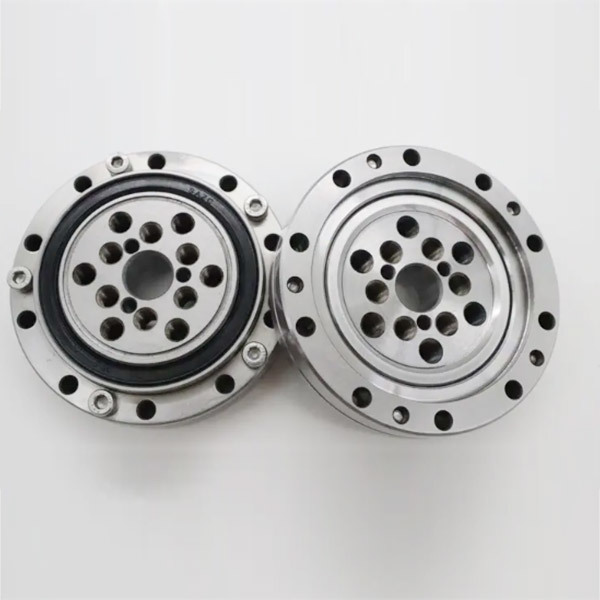

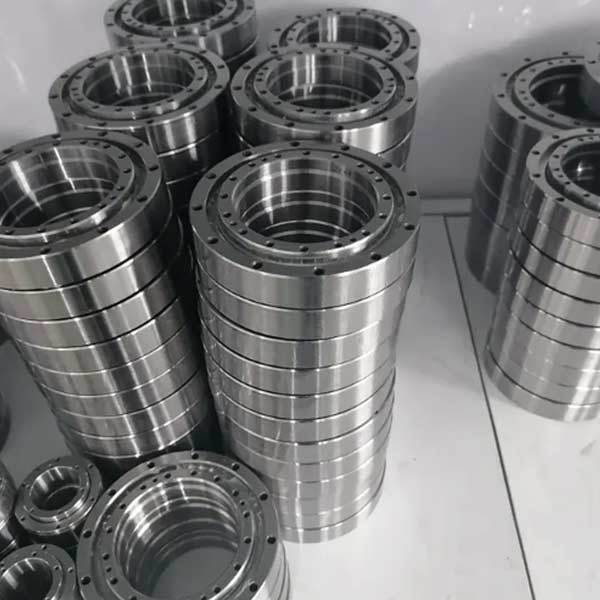

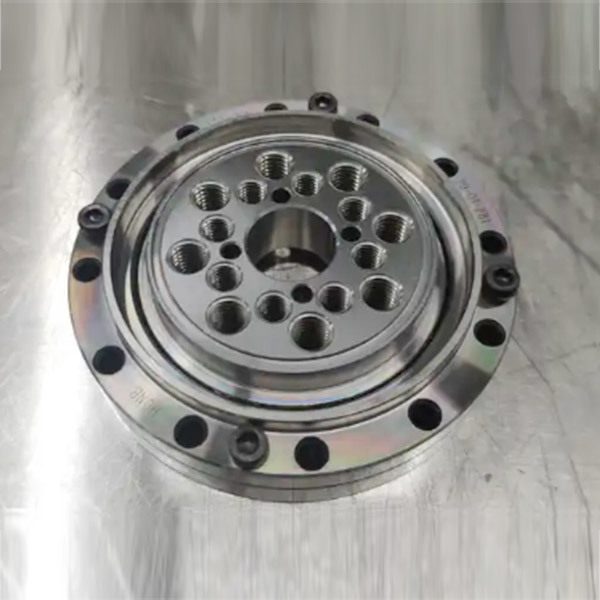

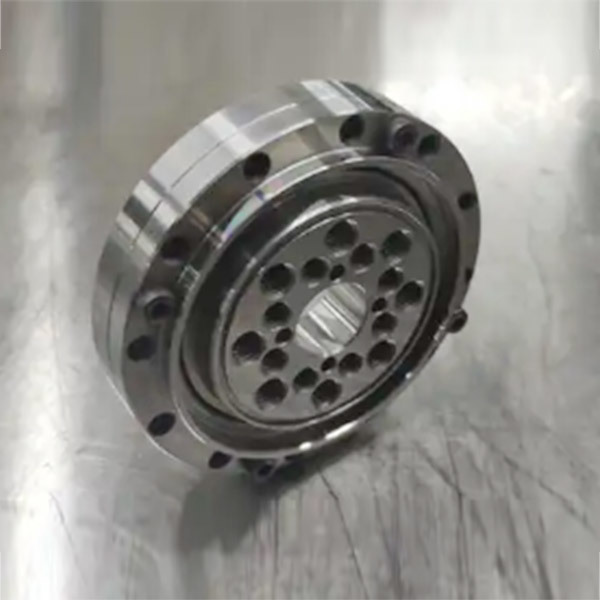

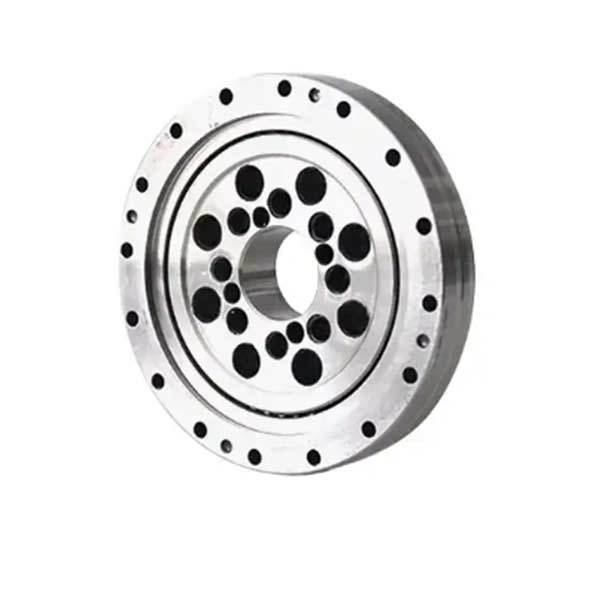

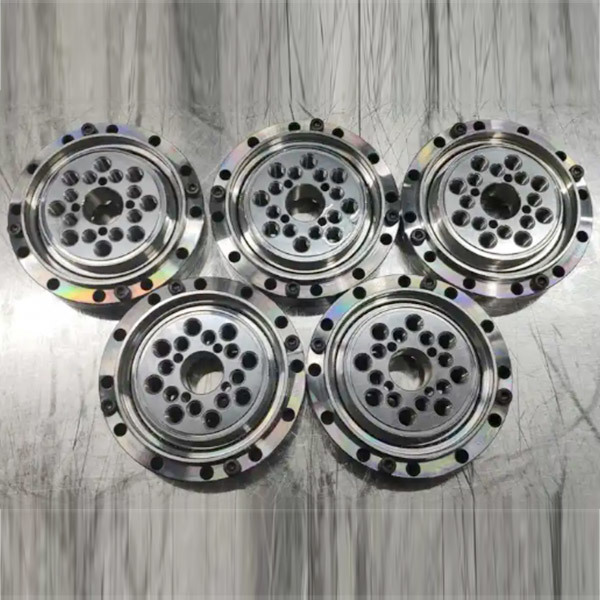

The bearing of harmonic reducer is a kind of matching bearing specially designed for harmonic reducer. The bearing of harmonic reducer is mainly composed of two surfaces. The harmonic reducer is equipped with cross roller bearings, which can be divided into two categories according to its application: outer ring split, inner ring integral (BCSF/BCSG series) and outer ring and inner ring integral (BSHF/BSHG series). The rolling body is cylindrical roller, which is distributed in the V-shaped raceway at 90 ° to each other. This structure enables a single bearing to bear axial load, radial load, overturning moment and other loads in all directions at the same time. The bearing has high stiffness, rotation accuracy and composite bearing capacity; This type of bearing is compact in shape and has its own mounting hole, which is convenient for customers to install directly. It is suitable for various types of harmonic reducers.

Category：

Harmonic Drive Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Product parameter

Bearing Number	d mm	D mm	T mm	D1 mm	D2 mm	D21 mm	D3 mm	n1-d1
CSF14-3516	9	55	16.5	49	23	14.5	15.5	8-φ3.5
CSF17-4216	10	62	16.5	56	27	17.5	17.5	10-φ3.5
CSF20-5016	14	70	16.5	64	32	24	19	12-φ3.5
CSF25-6218	20	85	18.5	79	42	30	26	16-φ3.5
CSF32-8022	26	112	22.5	104	55	40	34	16-φ4.5
CSF40-9524	24	126	24	117	68	50	42	20-φ5
CSF50-12031	32	157	31	147	84	60	50	16-φ5.5
CSF65-16039	44	210	39	198	110	80	64	20-φ6.5
CSF14-3516	9	55	16.5	49	23	14.5	15.5	8-φ3.5
CSF17-4216	10	62	16.5	56	27	17.5	17.5	10-φ3.5
CSF20-5016	14	70	16.5	64	32	24	19	12-φ3.5
CSF25-6218	20	85	18.5	79	42	30	26	16-φ3.5
CSF32-8022	26	112	22.5	104	55	40	34	16-φ4.5
CSF40-9524	24	126	24	117	68	50	42	20-φ5
CSF50-12031	32	157	31	147	84	60	50	16-φ5.5
CSF65-16039	44	210	39	198	110	80	64	20-φ6.5
SHF14-3516A	38	70	15.1	64	64	---	44	8-φ3.5
SHF17-4216A	47	80	17	74	74	---	54	12-φ3.5
SHF20-5016A	54	90	18.5	84	84	---	62	12-φ3.5
SHF25-6218A	68	110	20.7	102	102	---	77	12-φ4.5
SHF32-8022A	88	142	24.4	132	132	---	100	12-φ5.5
SHF40-9524A	108	170	30	158	158	---	122	12-φ6.6
SHF50-12031A	135	214	36	200	200	---	154	12-θ
CSD-14	11	55	16.6	42.5	16.1	13.9	2.6
CSD-17	11	62	16.6	49.7	16.1	13.9	2.6
CSD-20	16	70	18.3	57	17.8	15.6	2.6
CSD-25	20	85	23.4	73	22.9	20	3.3
CSD-32	30	112	24.5	95.3	23.5	20.9	3.5
CSD-40	32	126	29.1	109.6	28.1	24.6	4.4
CSD-50	44	157	34	138	33	29.4	4.5
3E904KAT2	25	4	18.8
3E905KAT2	32	5	24
3E806KAT2	40	6	30
1000907AKIT2	48.2	8	35.8
3E907KAT2	50	8	37
3E809KAT2	60	9	45
1000809AKIT2	61.8	9.5	45.7
10008810AKT2	63	9.7	48
1000912AKT2	80	12	60
3E911KAT2	57	75	12
3E812KAT2	60	80	13
3E814KAT2	70	95	15
3E815KAT2	75	100	15
3E818KAT2	90	120	18
3E822KAT2	110	150	24
3E824KAT2	120	160	24
3E826KAT2	130	175	30
3E830KAT2	150	200	30
3E832KAT2	160	220	35
3E836KAT2	180	240	35
3E838KAT2	190	250	40
3E842KAT2	210	280	45
3E844KAT2	220	300	45
F14	33.896	6.095	25.07
F17	41.722	6.16	30.3
F20	49.073	7.24	35.56
F25	61.341	9.015	45.212
F32	79.756	11.81	58.928
M14	33.896	6.095	25.07
M17	41.722	6.16	30.3
M20	49.073	7.24	35.56
M25	61.341	9.015	45.212
M32	79.756	11.81	58.928
φ20	20	4	14.5
φ26.11	26.11	4	19.9
φ26.54	26.54	4	20.2
φ27.5	27.5	4.5	20.4
φ30	30	6	22
φ33.87	33.87	6.1/6.4	25
φ33.896	33.896	6.095/6.35	25
φ34	34	5	25.5
φ34.52	34.52	5	26.2
φ34.7	34.7	5	26.2
φ35.5	35.5	6	26.5
φ38.6	38.6	6	28.4
φ40.1	40.1	6	30.1
φ41.7	41.7	6.2/6.7	30.24
φ41.72	41.72	6.16/6.67	30.295
φ41.722	41.722	5.16/6.68	30.3
φ42	42	8	33
φ48	48	8	35.5
φ48.2	48.2	8	35.5
φ48.3	48.3	8	35.9
φ49.03	49.03	7.2/8.1	35.5
φ49.06	49.06	7.2/8.1	35.55
φ49.07	49.07	7.23/8.1	35.56
φ49.073	49.073	7.24/8.13	35.56
φ49.08	49.08
φ49.1	49.1	7.2/8.1	35.55
φ49.4	49.4	8	36.6
HDB80/110/16	110	16	80
HDB83/115/20	115	20	83
HDB90/120/18	120	18	90
HDB94/125/18.5	125	18.5	94
HDB100/140/25	140	25	100
HDB104/142/21	142	21	104
HDB120/160/24	160	24	120
HDB125/175/32	175	32	125
HDB150/200/30	200	30	150
HDB160/220/33	220	33	160
HDB180/240/35	240	35	180
HDB190/250/36	250	36	190
HDB220/300/45	300	45	220
HDB22/30/5	30	5	22
HDB22.79/28.8/3.8/4	28.8	3.8	22.79
HDB24/32/5	32	5	24
HDB25.2/34/6.3/6.05	34	6.3	25.2
HDB27/37/6	37	6	27
HDB30/40/6	40	6	30
HDB34/47/8	47	8	34
HDB35.8/48.2/8	48.2	8	35.8
HDB37/50/8	50	8	37
HDB42/58/10	58	10	42
HDB45/60/9	60	9	45
HDB45.1/61.3/6.35/9	61.3	6.35	45.1
HDB48/63/9.5	63	9.5	48
HDB52/72/12	72	12	52
HDB59/79.8/8.6/11.8	79.8	8.6	59
HDB60/80/12	80	12	60
HDB65/90/16	90	16	65
HDB72/95/15	95	15	71
