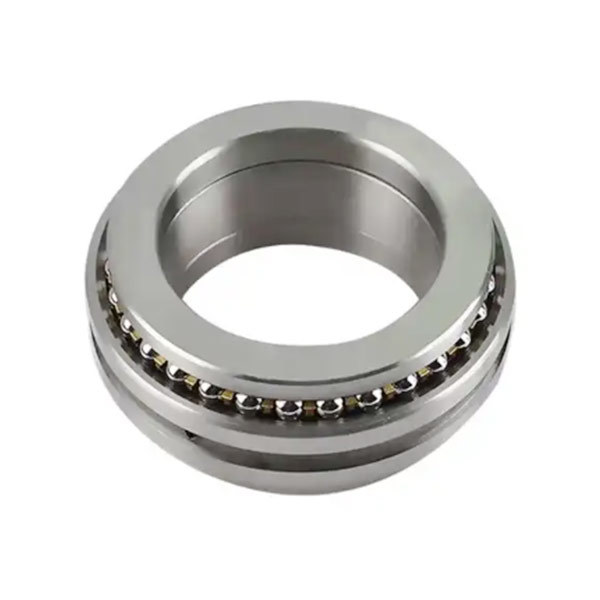

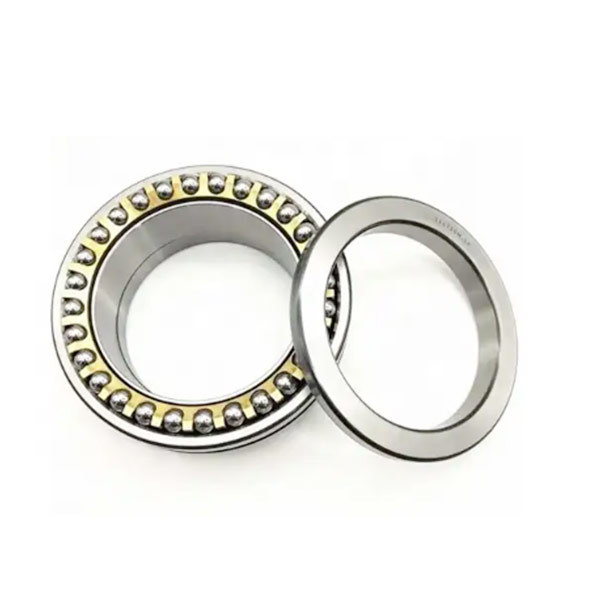

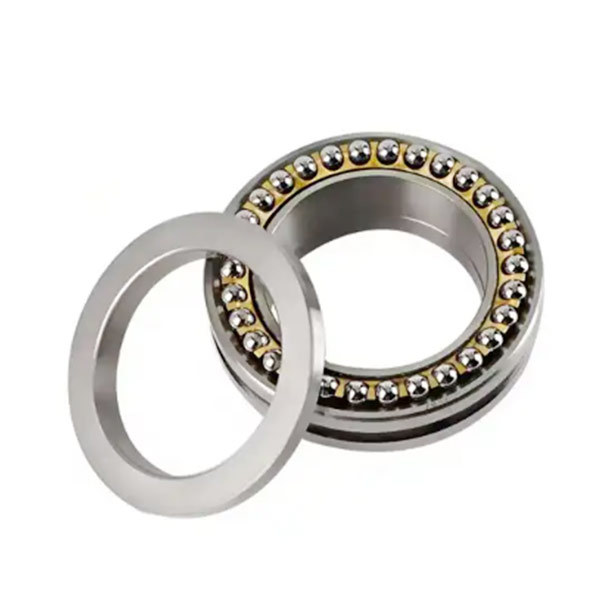

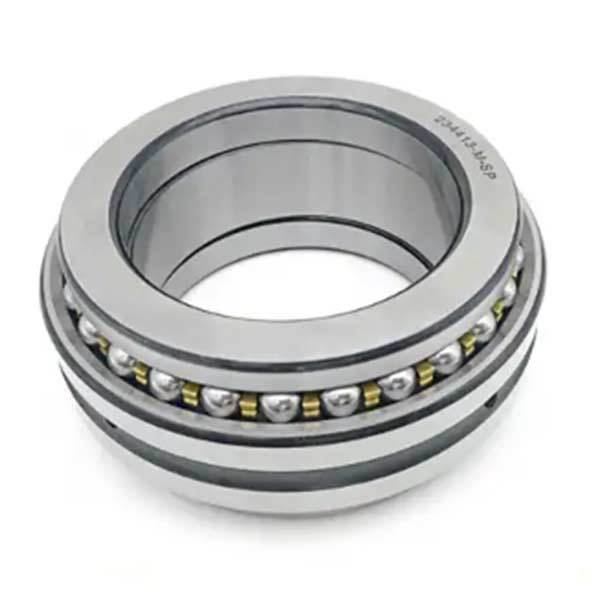

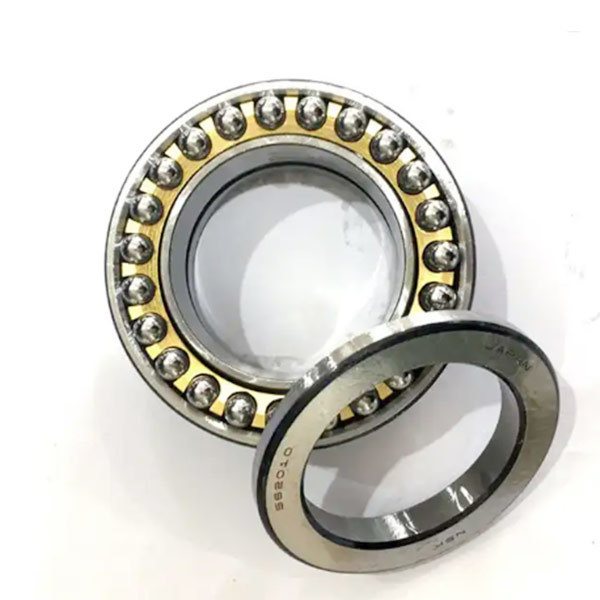

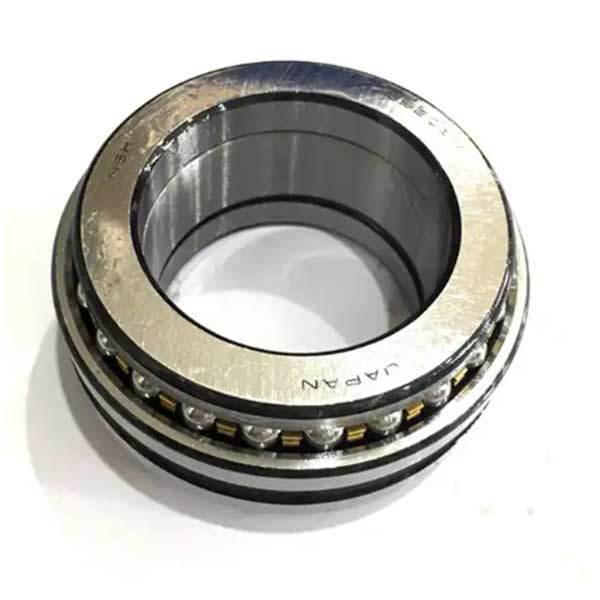

230000 B BM Series Thrust Ball Bearings

The thrust ball bearing is designed to withstand thrust load at high speed, and is composed of washer-like rings with ball rolling raceway groove. Because the collar is cushion type, the thrust ball bearing is divided into two types: flat-bottomed cushion type and self-aligning spherical cushion type. In addition, this kind of bearing can bear axial load, but cannot bear radial load.

Category：

Thrust Ball Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Product parameter

Bearing Number	d	D	B
Bearing Number	(mm)	(mm)	(mm)
234407B	35	62	34
234408B	40	68	36
234409B	45	75	38
234410B	50	80	38
234411B	55	90	44
234412B	60	95	44
234413B	65	100	44
234414B	70	110	48
234415B	75	115	48
234416B	80	125	54
234417B	85	130	54
234418B	90	140	60
234419B	95	145	60
234420B	100	150	60
234421B	105	160	66
234422B	110	170	72
234424B	120	180	72
234426B	130	200	84
234428B	140	210	84
234430B	150	225	90
234432B	160	240	96
234438B	190	290	120
234440B	200	310	132
234705B	27	47	28
234706B	32	55	32
234707B	37	62	34
234708B	42	68	36
234709B	47	75	38
234710B	52	80	38
234711B	57	90	44
234712B	62	95	44
234713B	67	100	44
234714B	73	110	48
234715B	78	115	48
234716B	83	125	54
234717B	88	130	54
234718B	93	140	60
234719B	98	145	60
234720B	103	150	60
234721B	109	160	66
234722B	114	170	72
234724B	124	180	72
234726B	135	200	84
234728B	145	210	84
234730B	155	225	90
234732B	165	240	96
234738B	197	290	120
234740B	207	310	132
234406BM	30	55	32
234706BM	32	55	32
234407BM	35	62	34
234707BM	37	62	34
234408BM	40	68	36
234708BM	42	68	36
234409BM	45	75	38
234709BM	47	75	38
234410BM	50	80	38
234710BM	52	80	38
234411BM	55	90	44
234711BM	57	90	44
234412BM	60	95	44
234712BM	62	95	44
234413BM	65	100	44
234713BM	67	100	44
234414BM	70	110	48
234714BM	73	110	48
234415BM	75	115	48
234715BM	78	115	48
234416BM	80	125	54
234716BM	83	125	54
234417BM	85	130	54
234717BM	88	130	54
234418BM	90	140	60
234718BM	93	140	60
234419BM	95	145	60
234719BM	98	145	60
234420BM	100	150	60
234720BM	103	150	60
234421BM	105	160	66
234721BM	109	160	66
234422BM	110	170	72
234722BM	114	170	72
234424BM	120	180	72
234724BM	124	180	72
234426BM	130	200	84
234726BM	135	200	84
234428BM	140	210	84
234728BM	145	210	84
234430BM	150	225	90
234730BM	155	225	90
234432BM	160	240	96
234732BM	165	240	96
234434BM	70	260	108
234734BM	70	260	108
234436BM	70	260	108
234736BM	70	260	108
234438BM	190	290	120
234738BM	197	290	120
234440BM	200	310	132
234740BM	207	310	132
234908BM	40	62	28
234920BM	78	115	48
234921BM	78	115	48
234922BM	78	115	48
234924BM	78	115	48
234926BM	78	115	48
234928BM	140	190	60
234930BM	150	210	72
234932BM	150	210	72
234934BM	170	230	72
234936BM	170	230	72
234938BM	190	260	84
234940BM	200	280	96
