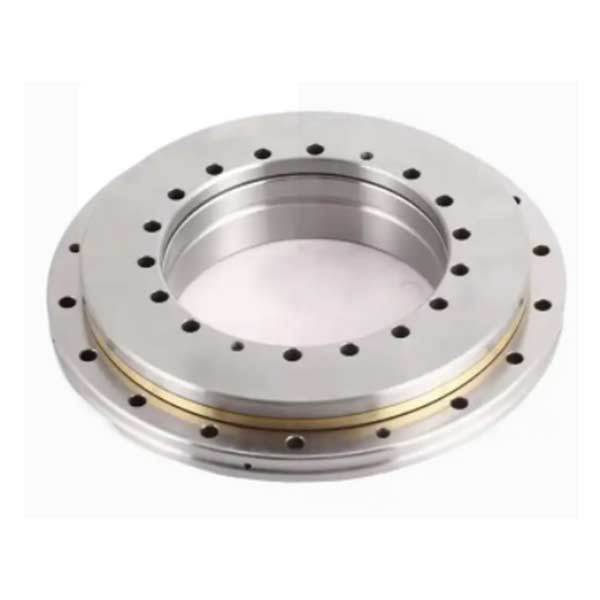

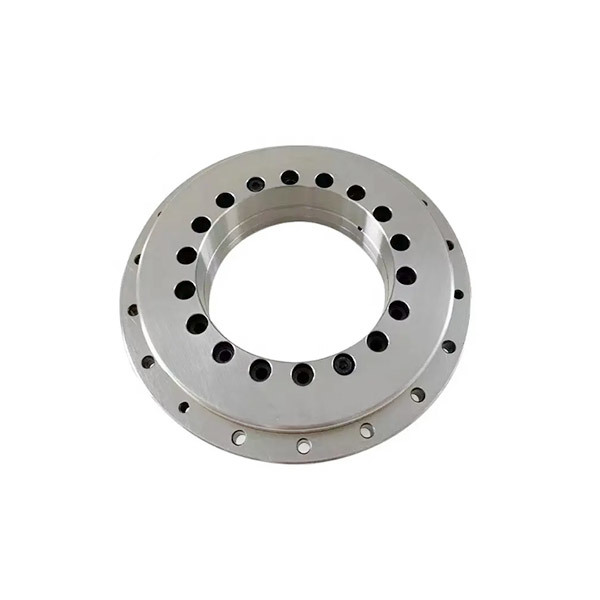

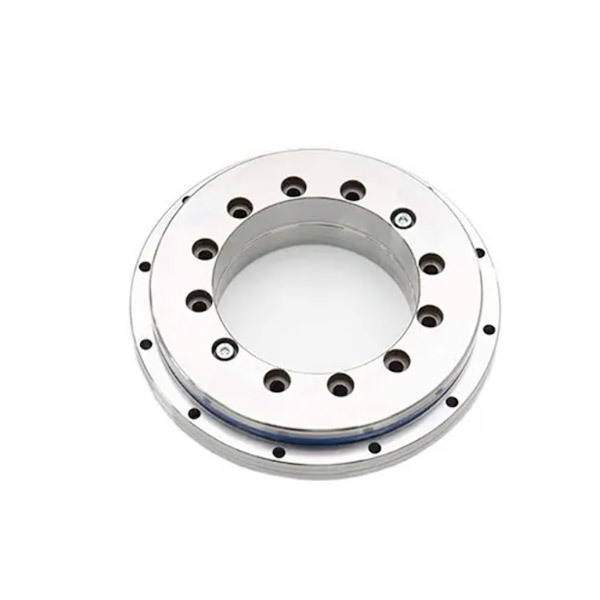

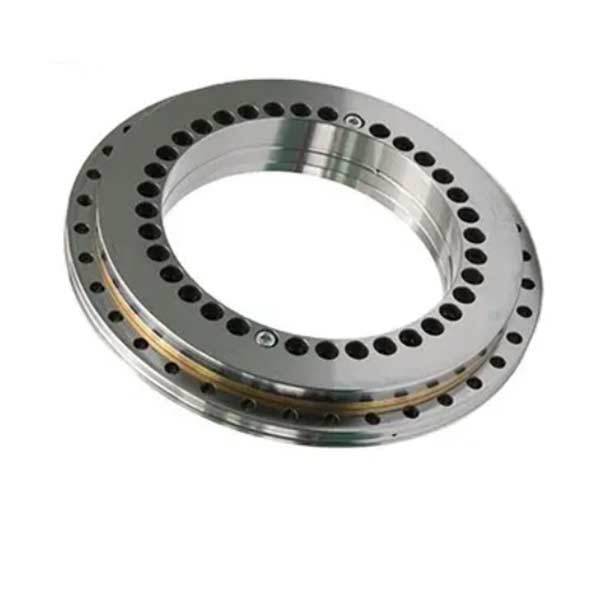

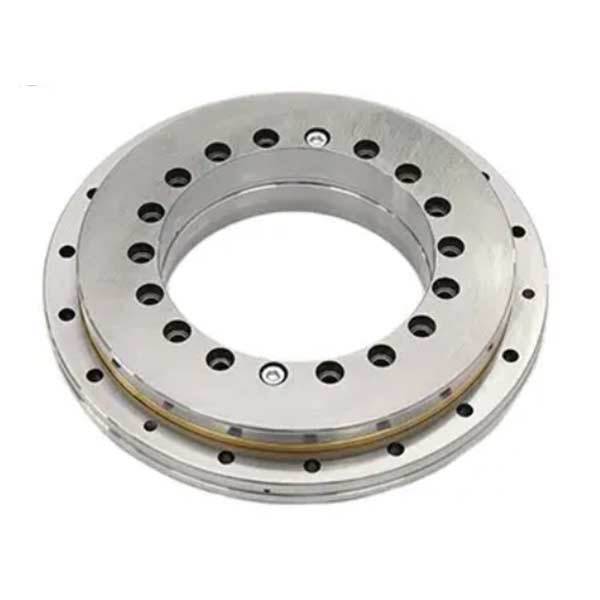

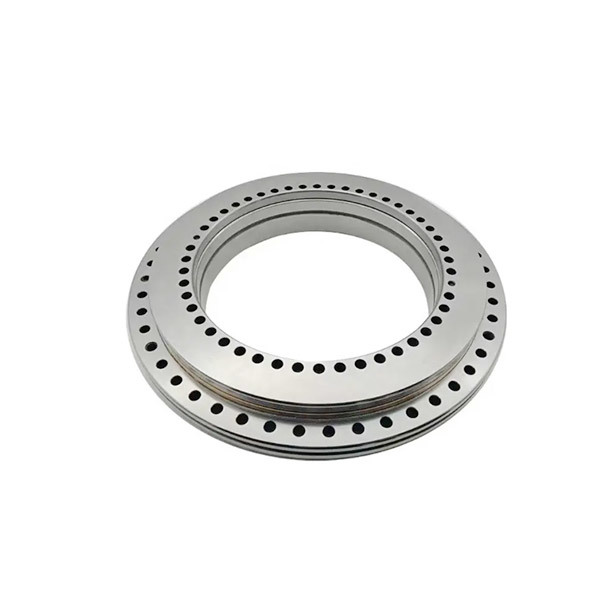

YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing
YRT turntable bearing

YRT turntable bearing

Cross roller bearing is a special type of bearing with inner ring split and outer ring rotating. Since the split inner ring or outer ring is fixed with the cross roller collar after installing the roller and spacer retainer to prevent separation from each other, it is easy to install the cross roller collar. Because the rollers are arranged crosswise, only one set of cross roller collar can bear the load in all directions. Compared with the traditional model, the rigidity is increased by 3-4 times. At the same time, because the inner ring or outer ring of the cross roller bearing is divided into two parts, the bearing clearance can be adjusted, even if preload is applied, it can also obtain high-precision rotation movement. Moreover, due to its special structure, it is commonly used as joint bearing in industrial robots.

Category：

Crossed Roller Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Related Products
Inquire Now

Key words：

YRT turntable bearing

YRT turntable bearing

Crossed Roller Bearings



Cross roller bearing is a special type of bearing with inner ring split and outer ring rotating. Since the split inner ring or outer ring is fixed with the cross roller collar after installing the roller and spacer retainer to prevent separation from each other, it is easy to install the cross roller collar. Because the rollers are arranged crosswise, only one set of cross roller collar can bear the load in all directions. Compared with the traditional model, the rigidity is increased by 3-4 times. At the same time, because the inner ring or outer ring of the cross roller bearing is divided into two parts, the bearing clearance can be adjusted, even if preload is applied, it can also obtain high-precision rotation movement. Moreover, due to its special structure, it is commonly used as joint bearing in industrial robots.





Product parameter





Bearing Number inner diameter outer diameter hight
mm mm mm
YRT50 50 126 30
YRT80 80 146 35
YRT100 100 185 38
YRT120 120 210 40
YRT150 150 240 40
YRT180 182 280 43
YRT200 200 300 45
YRT260 260 385 55
YRT325 325 450 60
YRT395 395 525 65
YRT460 460 600 70
YRT580 580 750 90
YRT650 650 870 122
YRT850 850 1095 124
YRT950 950 1200 132
YRT1030 1030 1300 145
YRT1200 1200 1490 164
