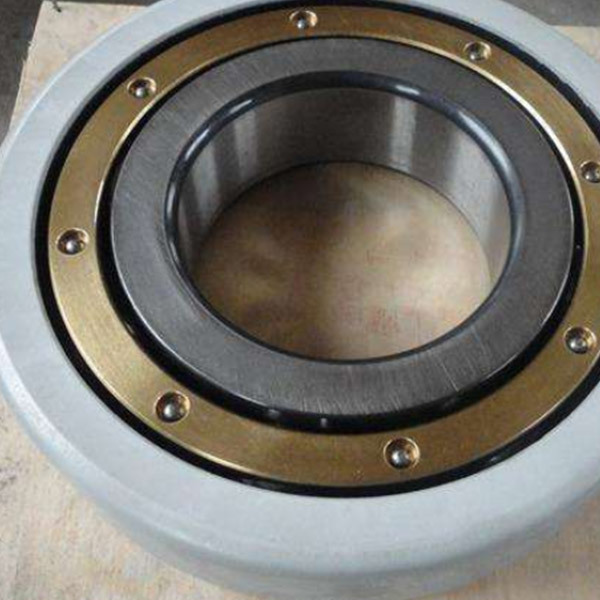

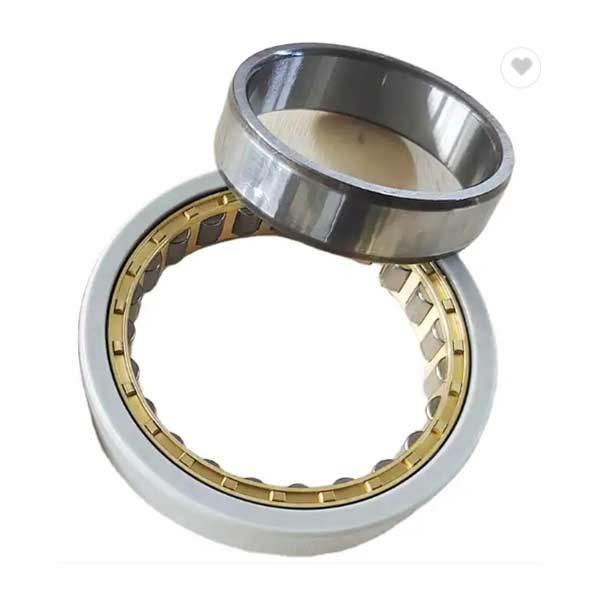

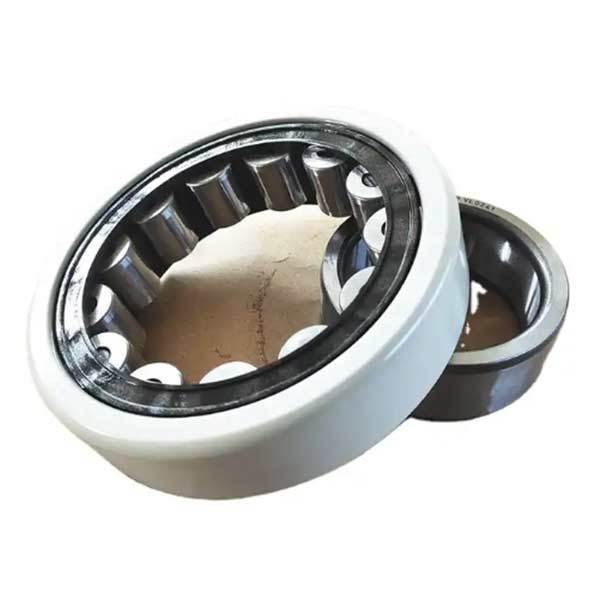

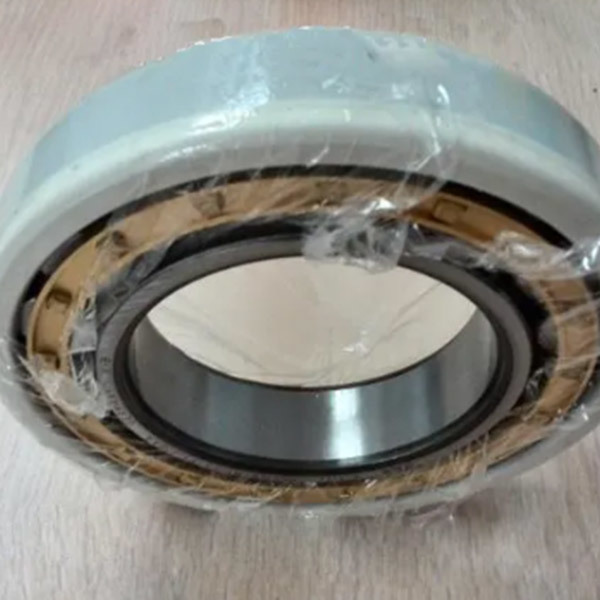

INSOCOAT cylindrical roller bearings

Category：

Insulated Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Related Products

Inquire Now

Key words：

INSOCOAT deep groove ball bearings

INSOCOAT cylindrical roller bearings

Insulated bearing

The electric insulated bearing adopts a special spraying process, and the outer surface of the bearing is sprayed with high-quality film. The film has strong binding force with the substrate and good insulation performance, which can avoid the electric corrosion of the bearing caused by the induced current, prevent the damage caused by the current to the lubricating grease, rolling body and raceway, and improve the service life of the bearing. The process has been continuously improved. In the insulated bearing, there is a layer of 100 μ M thick coating can withstand a voltage of up to 1000 V DC. The special spraying process can form a layer of coating with uniform thickness and extremely strong adhesion. After further treatment, it can be protected from the influence of moisture and humidity. The electrically insulated bearing adopts the special spraying process to spray high-quality coating on the outer surface of the bearing. The coating has strong adhesion with the substrate and good insulation performance, which can avoid the electric corrosion effect of the induced current on the bearing and prevent the damage caused by the current to the lubricating grease, rolling body and raceway, Improve the service life of bearings. The process has been continuously improved. In the insulated bearing, there is a layer of 100 μ M thick coating can withstand a voltage of up to 1000 V DC. The special spraying process can form a layer of coating with uniform thickness and strong adhesion, which can be further treated to avoid the influence of moisture and humidity

Product parameter

Designation	Principal dimensions			Basic load ratings		Speed ratings
	D(mm)	d(mm)	B(mm)	dynamic	static	Reference speed	Limiting speed
NU 1010 ECP/C3VL0241	50	80	16	46.8	56	9 500	9 500
NU 210 ECM/C3VL0241	50	90	20	73.5	69.5	8 500	9 000
NU 310 ECM/C3VL0241	50	110	27	127	112	6 700	8 000
NU 1011 ECML/C3VL0241	55	90	18	57.2	69.5	8 500	13 000
NU 1011 ECP/C3VL0241	55	90	18	57.2	69.5	8 500	8 500
NU 211 ECM/C3VL0241	55	100	21	96.5	95	7 500	8 000
NU 311 ECM/C3VL0241	55	120	29	156	143	6 000	7 000
NU 1012 ECP/C3VL0241	60	95	18	58.3	73.5	8 000	8 000
NU 1012 ML/C3VL0241	60	95	18	37.4	44	8 000	13 000
NU 212 ECM/C3VL0241	60	110	22	108	102	6 700	7 500
NU 312 ECM/C3VL0241	60	130	31	173	160	5 600	6 700
NU 1013 ECP/C3VL0241	65	100	18	62.7	81.5	7 500	7 500
NU 213 ECM/C3VL0241	65	120	23	122	118	6 300	6 700
NU 313 ECM/C3VL0241	65	140	33	212	196	5 300	6 000
NU 1014 ECM/C3VL0241	70	110	20	76.5	93	7 000	7 000
NU 1014 ECP/C3VL0241	70	110	20	76.5	93	7 000	7 000
NU 214 ECM/C3VL0241	70	125	24	137	137	6 000	6 300
