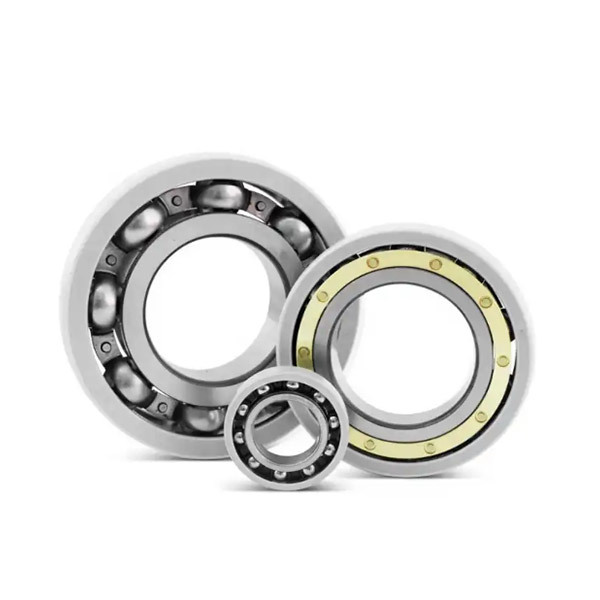

INSOCOAT deep groove ball bearings

Category：

Insulated Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Related Products

Inquire Now

Key words：

INSOCOAT deep groove ball bearings

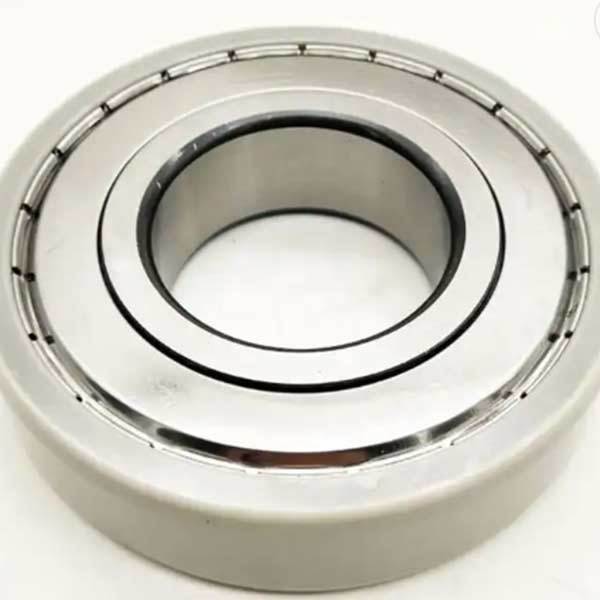

Insulated bearing

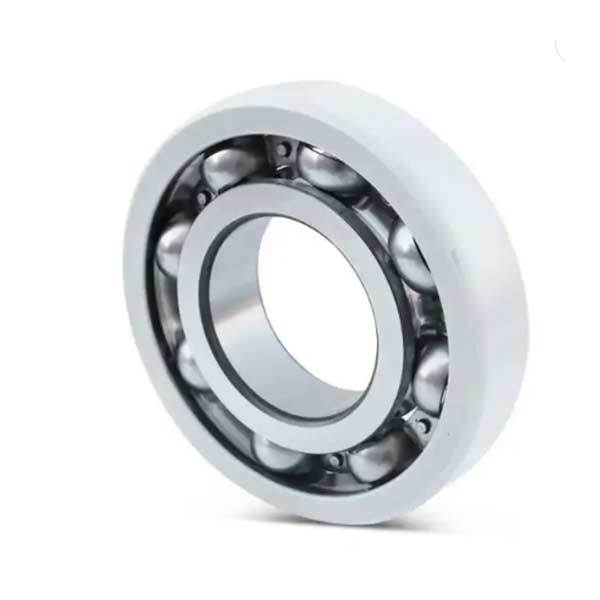

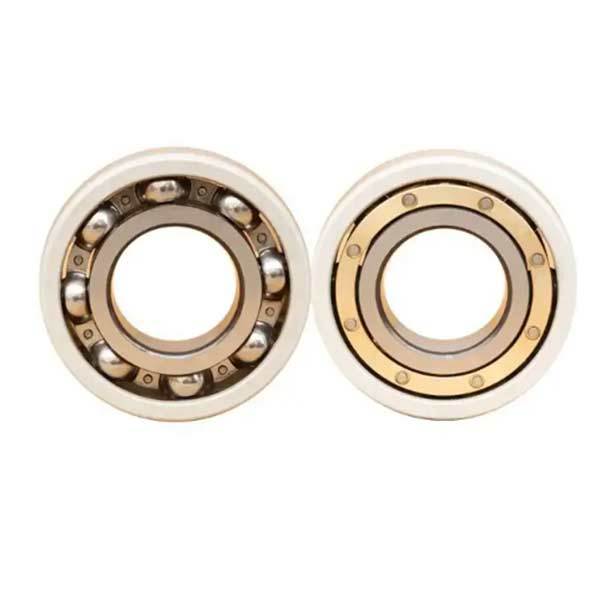

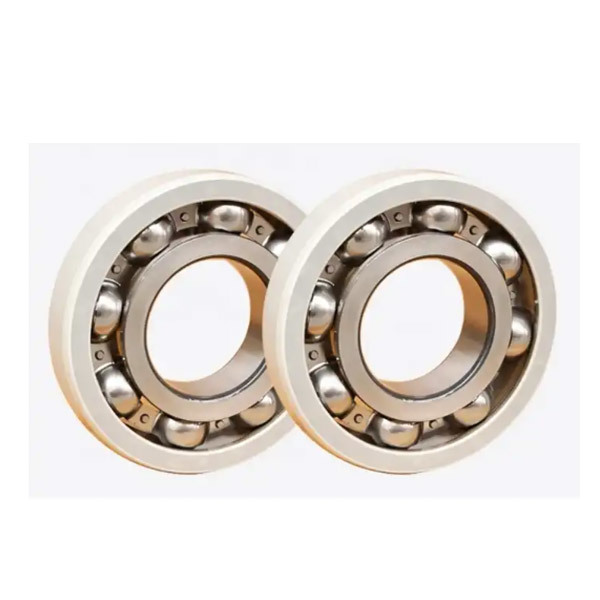

The electric insulated bearing adopts a special spraying process, and the outer surface of the bearing is sprayed with high-quality film. The film has strong binding force with the substrate and good insulation performance, which can avoid the electric corrosion of the bearing caused by the induced current, prevent the damage caused by the current to the lubricating grease, rolling body and raceway, and improve the service life of the bearing. The process has been continuously improved. In the insulated bearing, there is a layer of 100 μ M thick coating can withstand a voltage of up to 1000 V DC. The special spraying process can form a layer of coating with uniform thickness and extremely strong adhesion. After further treatment, it can be protected from the influence of moisture and humidity. The electrically insulated bearing adopts the special spraying process to spray high-quality coating on the outer surface of the bearing. The coating has strong adhesion with the substrate and good insulation performance, which can avoid the electric corrosion effect of the induced current on the bearing and prevent the damage caused by the current to the lubricating grease, rolling body and raceway, Improve the service life of bearings. The process has been continuously improved. In the insulated bearing, there is a layer of 100 μ M thick coating can withstand a voltage of up to 1000 V DC. The special spraying process can form a layer of coating with uniform thickness and strong adhesion, which can be further treated to avoid the influence of moisture and humidity

Product parameter

Principal dimensions			Mass	Bearing Number
d	D	B
mm			kg	-
70	150	35	2.5	6314/C3VL0241
75	130	25	1.2	6215/C3VL0241
75	160	37	3.05	6315/C3VL0241
80	140	26	1.4	6216/C3VL0241
80	170	39	3.55	6316/C3VL0241
85	150	28	1.75	6217/C3VL0241
85	180	41	4.1	6317/C3VL0241
90	160	30	2.4	6218/C3VL0241
90	190	43	4.9	6318/C3VL0241
95	170	32	2.5	6219/C3VL0241
95	200	45	5.65	6319/C3VL0241
100	180	34	3.15	6220/C3VL0241
100	215	47	7	6320/C3VL0241
110	200	38	4.25	6222/C3VL0241
110	240	50	9.65	6322/C3VL0241
120	215	40	5.2	6224/C3VL0241
120	260	55	12.5	6324/C3VL2071
