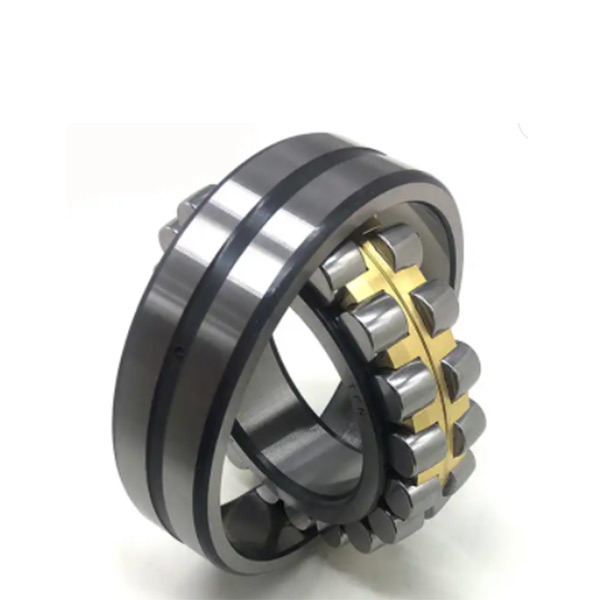

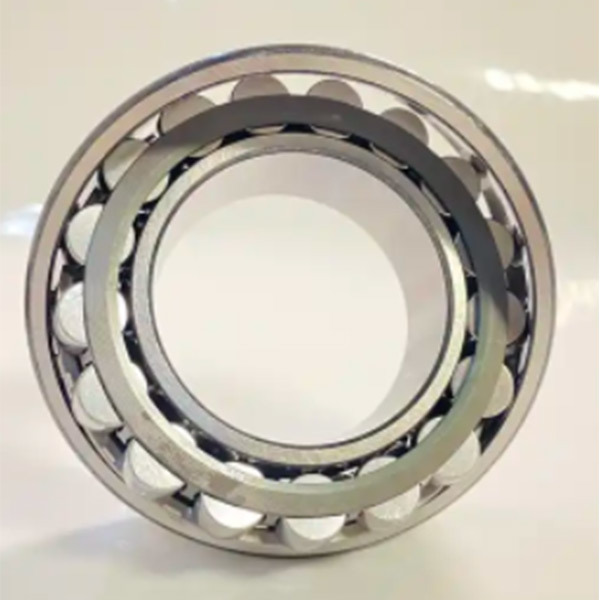

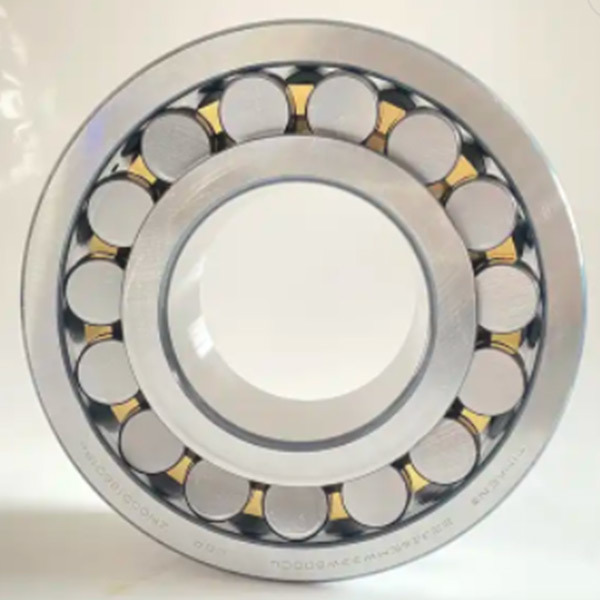

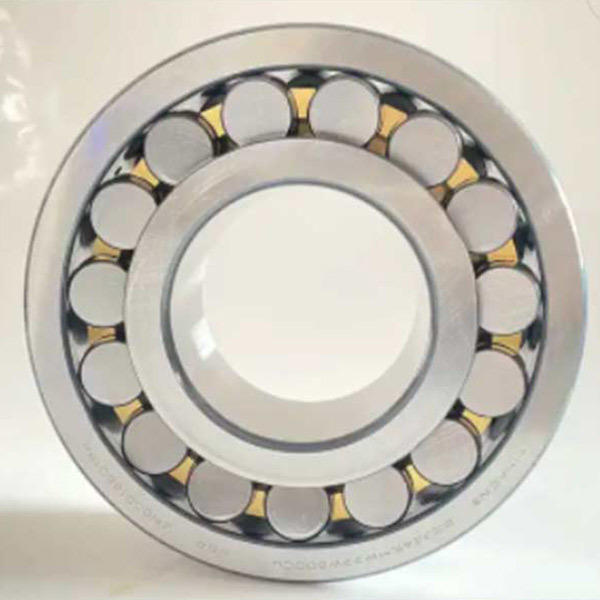

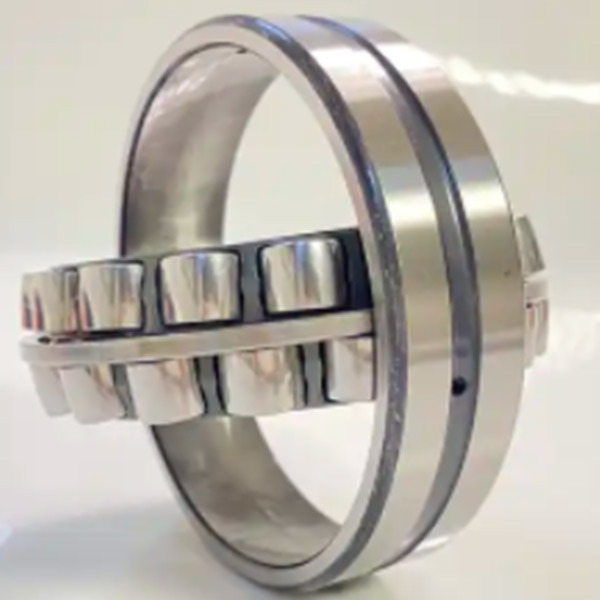

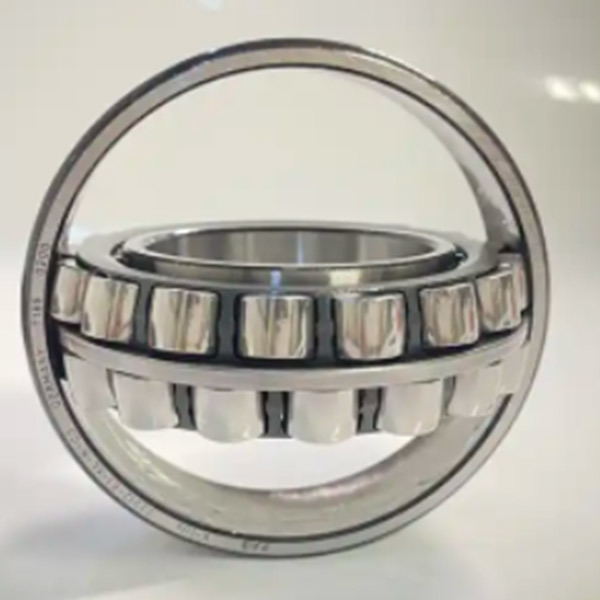

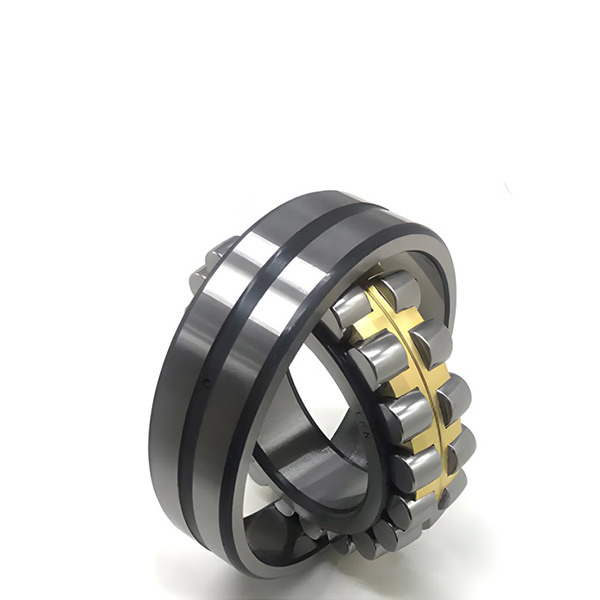

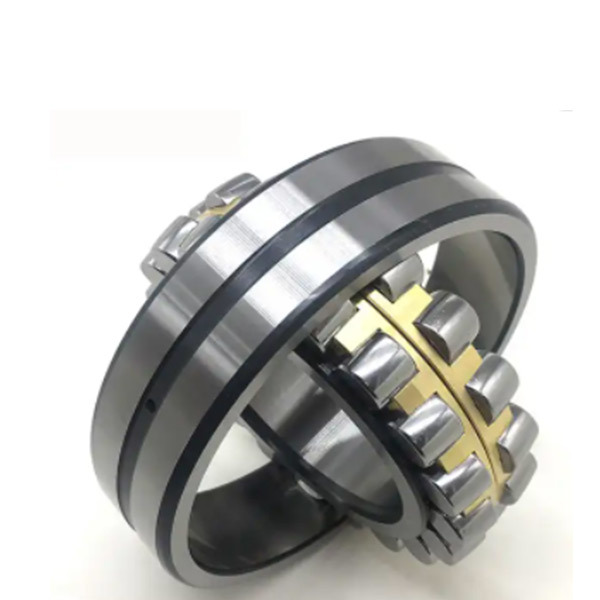

Self-aligning roller bearing has two rows of rollers, the outer ring has one common spherical raceway, and the inner ring has two raceways and is inclined at an angle with respect to the bearing axis. This ingenious structure makes it have automatic centering performance, so it is not easy to be affected by the angle between the shaft and the bearing housing seat or the bending of the shaft. It is suitable for the situation where the installation error or the bending of the shaft causes the angle error. The bearing can not only bear radial load, but also bear axial load of two-way action.

Category：

Spherical Roller Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Related Products
Inquire Now

Key words：

23000 series spherical roller bearings

23000 series spherical roller bearings

Spherical roller bearing



Self-aligning roller bearing has two rows of rollers, the outer ring has one common spherical raceway, and the inner ring has two raceways and is inclined at an angle with respect to the bearing axis. This ingenious structure makes it have automatic centering performance, so it is not easy to be affected by the angle between the shaft and the bearing housing seat or the bending of the shaft. It is suitable for the situation where the installation error or the bending of the shaft causes the angle error. The bearing can not only bear radial load, but also bear axial load of two-way action.
The self-aligning roller bearing has two kinds of inner holes, cylindrical and conical, and the taper of conical taper hole is 1:30 and 1:12. This kind of conical inner hole bearing is equipped with a set sleeve or a withdrawal sleeve, which can easily and quickly assemble the tapered inner hole self-aligning ball bearing on the optical shaft or the stepped machine shaft.





Product parameter





轴承型号 主要尺寸(mm) 重量
(kg)		 额定负荷(KN) 极限转速(r/min)
新型号 保持器 旧型号 d D B B Cr (KN) Cor(KN) mmp(脂)
23020CA CA/CC 3053120 110 150 37 2.51 560 930 245
23022CA CA/CC 3053122 110 170 45 3.54 630 1050 263
23024CA CA/CC 3053124 120 180 46 4 263 495 2000
23026CA CA/CC 3053126 130 200 52 6.6 340 350 1900
23028CA CA/CC 3053128 140 210 53 6.8 365 705 1800
23030CA CA/CC 3053130 150 225 56 8.9 400 795 1700
23032CA CA/CC 3053132 160 240 60 9.7 445 875 1700
23034CA CA/CC 3053134 170 260 67 13 555 1090 1600
23036CA CA/CC 3053136 180 280 74 17 630 1280 1400
23038CA CA/CC 3053138 190 290 75 18.5 700 1450 1300
23040CA CA/CC 3053140 200 310 82 23 770 1560 1200
23044CA CA/CC 3053144 220 340 90 30.3 935 1900 1100
23048CA CA/CC 3053148 240 360 92 32.6 985 2080 1000
23052CA CA/CC 3053152 260 400 104 49.8 1230 2550 900
23056CA CA/CC 3053156 280 420 106 54.9 1320 2850 850
23060CA CA/CC 3053160 300 460 118 73 1610 3450 800
23064CA CA/CC 3053164 320 480 121 78 1960 3800 800
23068CA CA/CC 3053168 340 520 133 109 1980 4400 700
23072CA CA/CC 3053172 360 540 134 114 2280 4800 670
23076CA CA/CC 3053176 380 560 135 122 2480 5000 630
23080CA CA/CC 3053180 400 600 148 165 2540 5900 600
23084CA CA/CC 3053184 420 620 150 175 2700 6400 450
23088CA CA/CC 3053188 440 650 157 192 2780 6500 430
23092CA CA/CC 3053192 460 680 163 223 3450 6950 400
