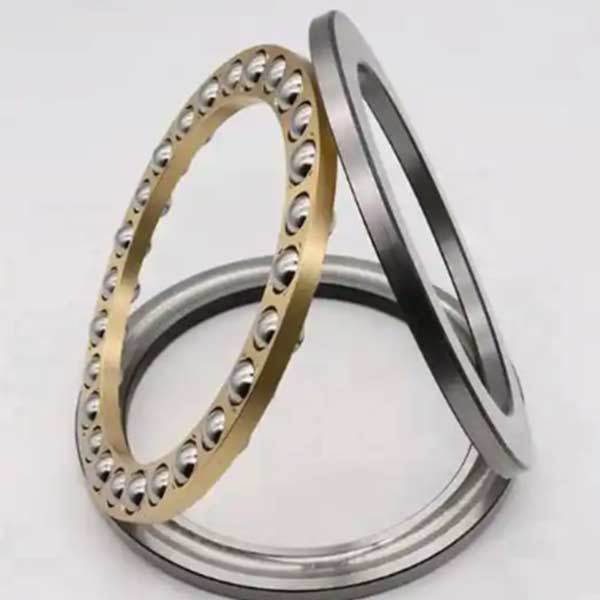

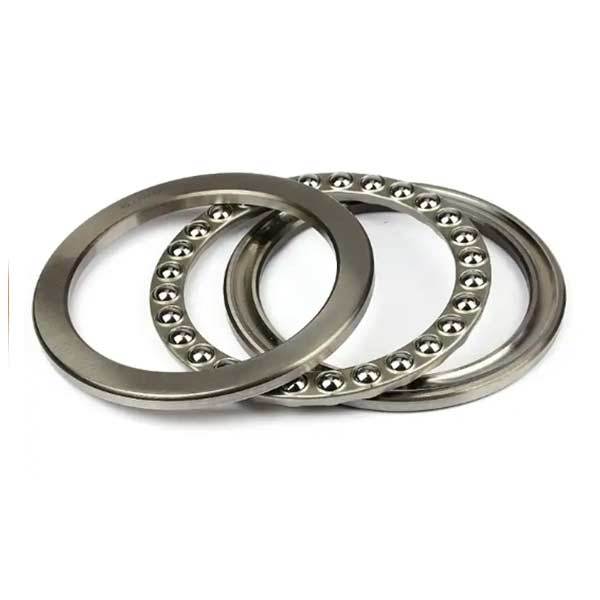

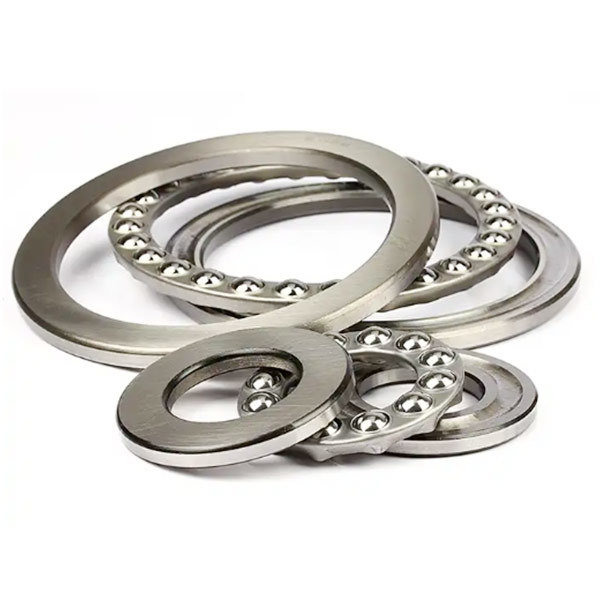

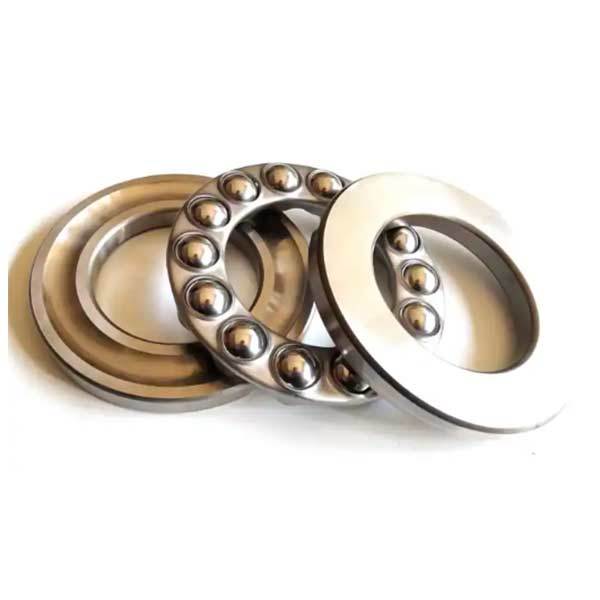

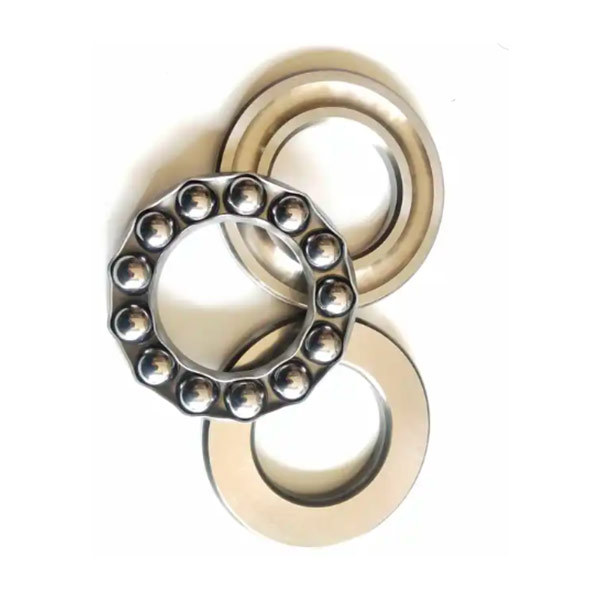

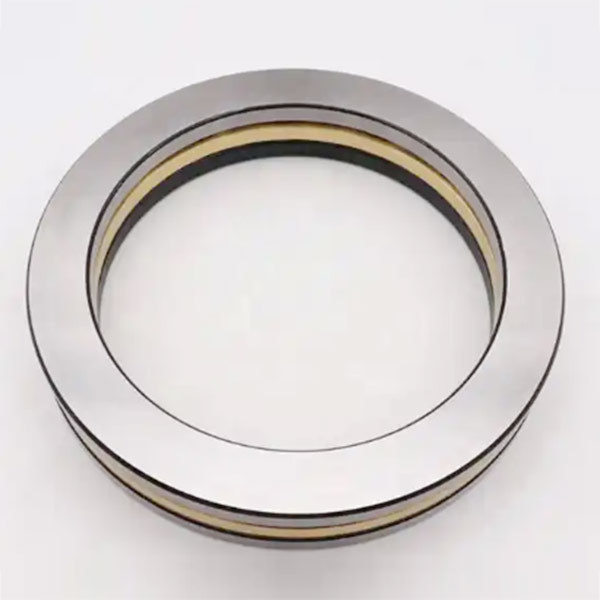

The thrust ball bearing is designed to withstand thrust load at high speed, and is composed of washer-like rings with ball rolling raceway groove. Because the collar is cushion type, the thrust ball bearing is divided into two types: flat-bottomed cushion type and self-aligning spherical cushion type. In addition, this kind of bearing can bear axial load, but cannot bear radial load.

Category：

Thrust Ball Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Related Products
Inquire Now

Key words：

53000U Series Thrust Ball Bearings

53000U Series Thrust Ball Bearings

Thrust Ball Bearings



The thrust ball bearing is designed to withstand thrust load at high speed, and is composed of washer-like rings with ball rolling raceway groove. Because the collar is cushion type, the thrust ball bearing is divided into two types: flat-bottomed cushion type and self-aligning spherical cushion type. In addition, this kind of bearing can bear axial load, but cannot bear radial load.





Product parameter





Bearing Number Weight Dimensions(mm)
(kg) d x D x T
53200U 0.045 10*28*13
53201U 0.05 12*30*13
53202U 0.063 15*35*15
53203U 0.071 17*38*15
53204U 0.1 20*42*17
53205U 0.15 25*50*19
53206U 0.18 30*55*20
53207U 0.29 35*65*22
53208U 0.35 40*72*23
53209U 0.4 45*78*24
53210U 0.51 50*82*26
53211U 0.75 55*95*30
53212U 0.82 60*100*31
53213U 0.9 65*105*32
53214U 0.97 70*110*32
53215U 1.15 75*115*32
53216U 1.18 80*120*33
53217U 1.5 85*130*37
53218U 2.31 90*140*42
53220U 2.7 100*155*45
53305U 0.25 25*55*22
53306U 0.33 30*62*25
53307U 0.46 35*72*28
53308U 0.67 40*82*31
53309U 0.83 45*90*33
53310U 1.2 50*100*37
53311U 1.68 55*110*42
53312U 1.71 60*115*42
53313U 1.89 65*120*43
53314U 2.51 70*130*48
53315U 3.2 75*140*52
53316U 3.24 80*145*52
53317U 4.35 85*155*58
53405U 0.428 25*62*29
53406U 0.602 30*75*33
53407U 1.04 35*85*37
53408U 1.35 40*95*42
53409U 1.62 45*105*46
53410U 2.31 50*115*50
53411U 3.08 55*125*55
53412U 3.8 60*135*58
53413U 5.5 65*145*65
53414U 6.5 70*155*69
53415U 8.1 75*165*75
53416U 9.9 80*175*78
