53000 Series Thrust Ball Bearings

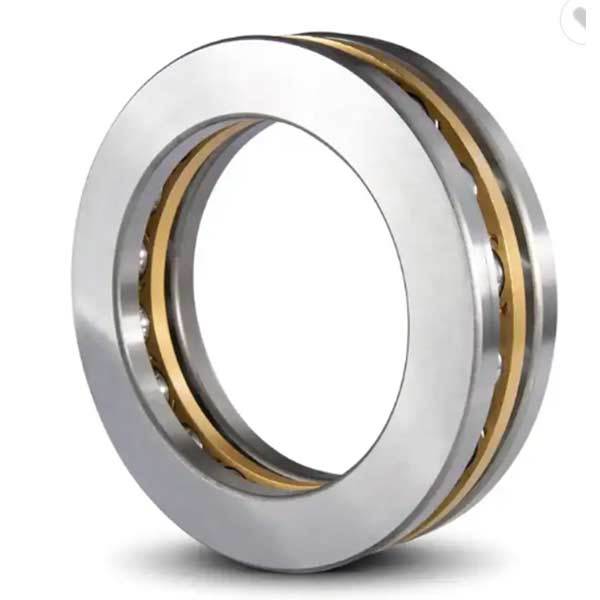

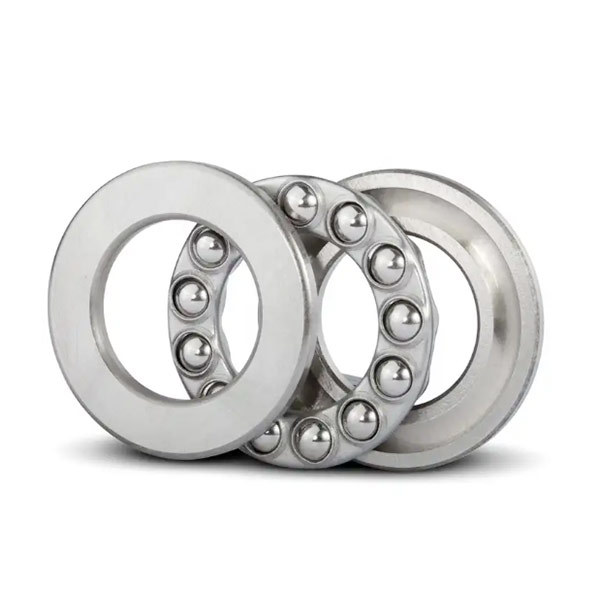

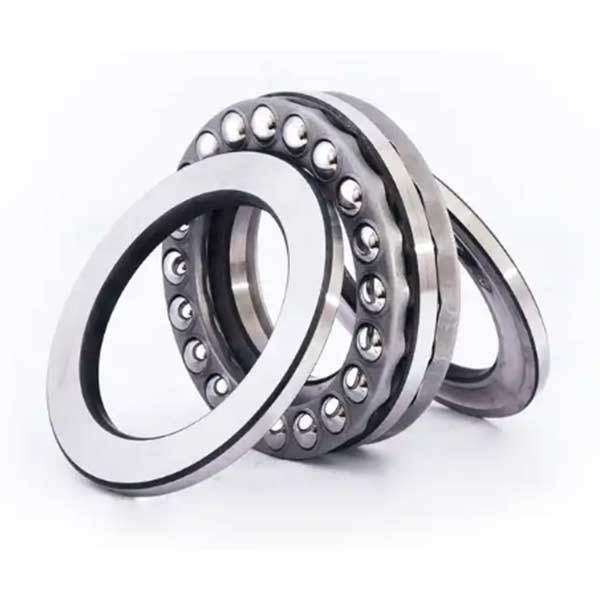

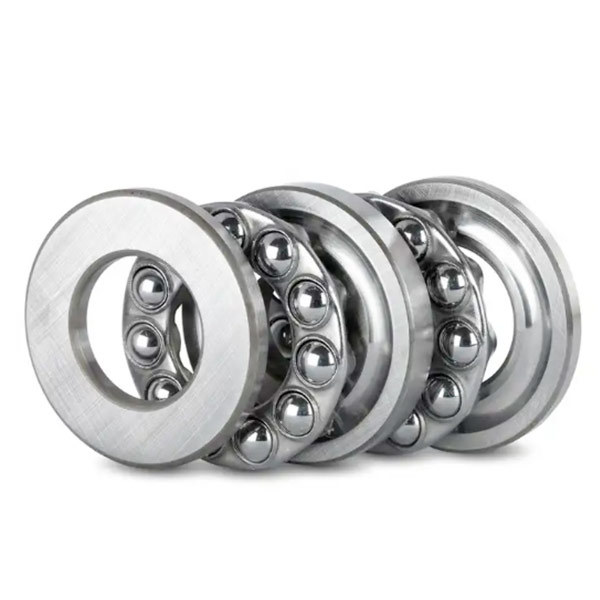

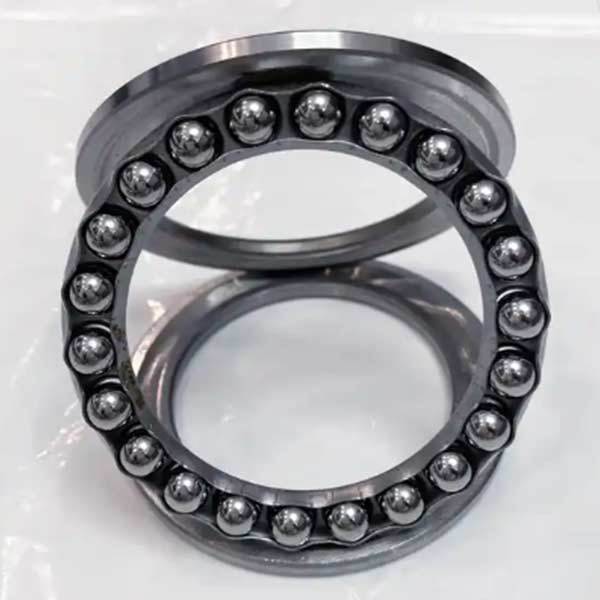

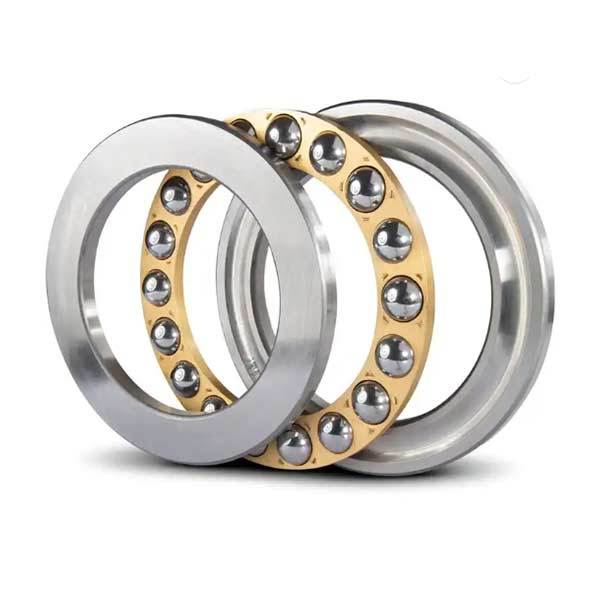

The thrust ball bearing is designed to withstand thrust load at high speed, and is composed of washer-like rings with ball rolling raceway groove. Because the collar is cushion type, the thrust ball bearing is divided into two types: flat-bottomed cushion type and self-aligning spherical cushion type. In addition, this kind of bearing can bear axial load, but cannot bear radial load.

Category：

Thrust Ball Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Product parameter

Bearing Number	d	D	B	Cr	Cor	Mass
Bearing Number	(mm)	(mm)	(mm)	(kN)	(kN)	(kg)
53200	10	26	11.6	12.7	17.1	0.029
53226	130	190	47.9	203	622	3.98
53228	140	200	48.6	215	669	4.35
53230	150	215	53.7	244	768	5.45
53232	160	225	54.7	247	803	6.09
53234	170	240	58.7	269	874	7.69
53236	180	250	58.2	294	986	8.08
53238	190	270	65.6	298	1010	11.2
53240	200	280	65.3	314	1110	11.6
53244	220	300	65.5	342	1310	12.6
53248	240	340	81.7	442	1800	20.9
53252	260	360	82.8	445	1880	22.6
53256	280	380	85	-	-	-
53260	300	420	100.5	570	2600	39.5
53264	320	440	100.5	577	2710	42
53305	25	52	19.8	35.7	61.4	0.18
53317	85	150	53.1	206	489	3.63
53318	90	155	54.6	213	524	3.87
53322	110	190	67.2	280	754	7.63
53324	120	210	74.1	325	931	10.4
53326	130	225	80.3	346	1030	12.7
53328	140	240	84.9	367	1130	15.1
53330	150	250	83.7	377	1200	15.7
53332	160	270	91.7	470	1570	21
53334	170	280	91.3	463	1570	22
53336	180	300	99.3	463	1580	26.9
53405	25	60	26.4	55.6	89.4	0.35
53406	30	70	30.1	72.8	126	0.53
53407	35	80	34	87.1	155	0.79
53408	40	90	38.2	113	205	1.12
53409	45	100	42.4	130	242	1.5
53410	50	110	45.6	148	283	1.97
53411	55	120	50.5	178	359	2.57
53412	60	130	54	-	-	-
53413	65	140	60.2	232	493	4.47
53414	70	150	63.6	250	533	5.38
53415	75	160	69	252	560	6.64
53416	80	170	72.2	270	621	7.84
53417	85	180	77	307	753	9.2
53418	90	190	81.2	327	826	10.7
53420	100	210	90	368	983	14.5
53422	110	230	99.7	-	-	-
53424	120	250	107.3	-	-	-
53426	130	270	115.2	-	-	-
53428	140	280	117	-	-	-
53430	150	300	125.9	-	-	-
53432	160	320	135.3	-	-	-
53434	170	340	141	-	-	-
53436	180	360	148.3	-	-	-
511/530	530	640	85	—	—	55.8
53201	12	28	11.4	13.2	19	0.031
53202	15	32	13.3	16.6	24.8	0.048
53203	17	35	13.2	17.2	27.3	0.055
53204	20	40	14.7	22.3	37.7	0.08
53205	25	47	16.7	27.8	50.4	0.12
53206	30	52	20	29.3	58.2	0.16
53207	35	62	19.9	39.2	78.2	0.22
53208	40	68	20.3	46.9	98.3	0.27
53209	45	73	21.3	47.7	105	0.31
53210	50	78	23.5	48.5	111	0.38
53211	55	90	27.3	69.4	159	0.62
53212	60	95	28	73.6	179	0.69
53213	65	100	28.7	74.8	189	0.75
53214	70	105	28.8	73.6	189	0.8
53215	75	110	28.3	77.4	209	0.85
53216	80	115	29.5	78.5	218	0.93
53217	85	125	33.1	92.3	251	1.28
53218	90	135	28.5	117	326	1.77
53220	100	150	40.9	147	410	2.34
53222	110	160	67	148	431	2.5
53224	120	170	40.6	154	472	2.81
53306	30	60	22.6	42.8	78.7	0.27
53307	35	60	25.4	55.5	105	0.4
53308	40	78	28.5	69.3	135	0.57
53309	45	85	30.1	80	163	0.68
53310	50	95	34.3	91.6	186	1.01
53311	55	105	39.3	119	246	1.41
53312	60	110	38.3	124	267	1.47
53313	65	115	39.4	128	287	1.61
53314	70	125	44.2	148	339	2.15
53315	75	135	43.1	171	396	2.72
53316	80	140	47.6	176	424	2.86
53320	100	170	59.2	236	596	5.1
517/53/HV	53	72	15.5	-	-	0.215
517/53	53	72	15.5	-	-	0.215
53338	190	320	111	543	1950	36.3
53340	200	340	118.4	596	2220	42.7
53268	340	460	100.3	584	2830	45
53272	360	500	116.7	701	3500	65
