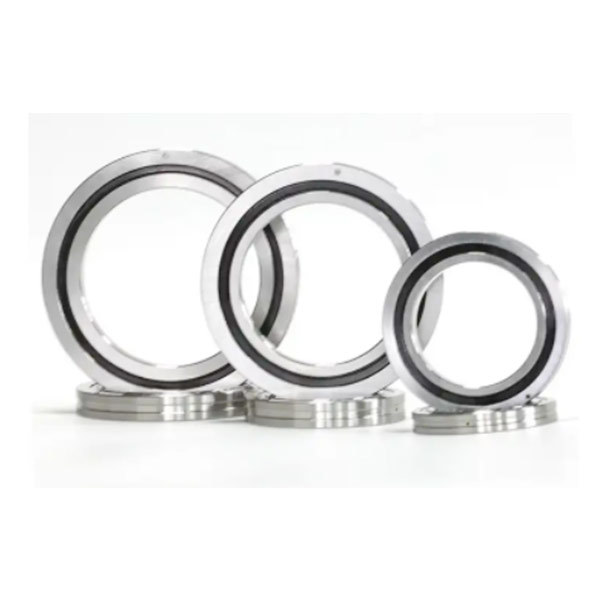

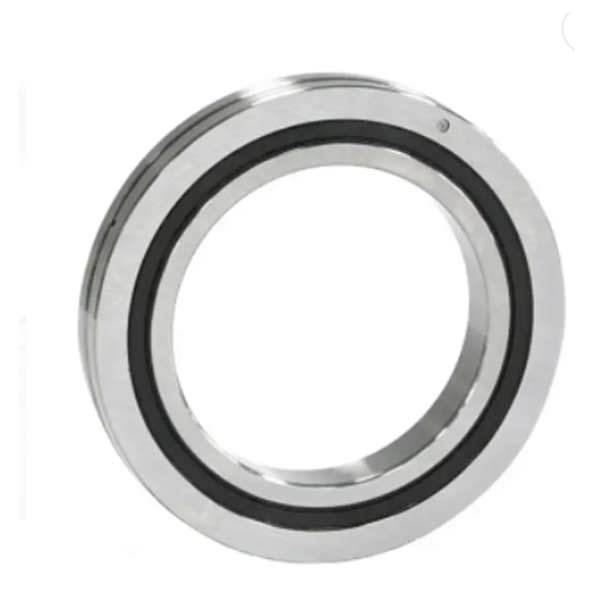

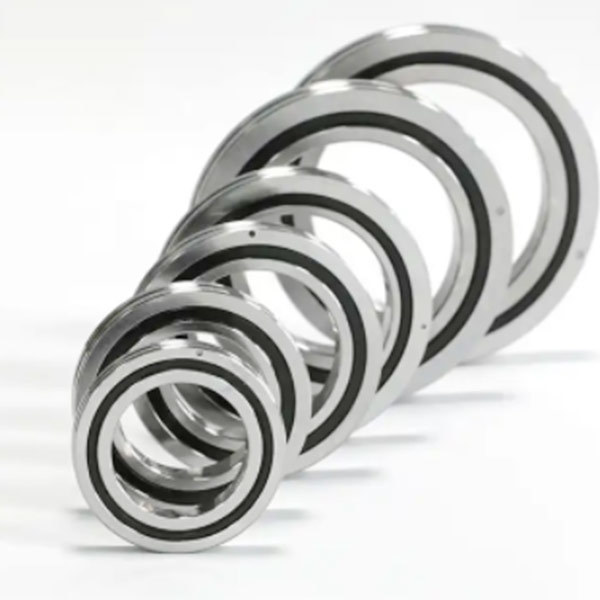

CRBH series crossed roller bearings

Cross roller bearing is a special type of bearing with inner ring split and outer ring rotating. Since the split inner ring or outer ring is fixed with the cross roller collar after installing the roller and spacer retainer to prevent separation from each other, it is easy to install the cross roller collar. Because the rollers are arranged crosswise, only one set of cross roller collar can bear the load in all directions. Compared with the traditional model, the rigidity is increased by 3-4 times. At the same time, because the inner ring or outer ring of the cross roller bearing is divided into two parts, the bearing clearance can be adjusted, even if preload is applied, it can also obtain high-precision rotation movement. Moreover, due to its special structure, it is commonly used as joint bearing in industrial robots.

Category：

Crossed Roller Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Product parameter

主要尺寸								基本额定载荷		质量KG
公称型号	内径d	外径D	滚子节圆直径Dpw	高度B B1	倒角r min	轴肩		Cr(kN)	Cor(kN）
						轴肩
						ds	Dn
CRBH 208	20	36	26.6	8	0.3	24	31	2.9	2.4	0.04
CRBH 258	25	41	31.1	8	0.3	29	36	3.1	2.8	0.05
CRBH 3010	30	55	41.5	10	0.3	36.5	48.5	7.6	8.4	0.12
CRBH 3510	35	60	46.5	10	0.3	41.5	53.5	7.9	9.1	0.13
CRBH 4010	40	65	51.5	10	0.3	46.5	58.5	8.6	10.6	0.15
CRBH 4510	45	70	56.5	10	0.3	51.8	63.5	8.9	11.3	0.16
CRBH 5013	50	80	64	13	0.6	56	74	17.3	20.9	0.29
CRBH 6013	60	90	74	13	0.6	66	84	18.8	24.3	0.33
CRBH 7013	70	100	82.3	13	0.6	76	94	20.1	27.7	0.38
CRBH 8016	80	120	100	16	0.6	88	112	32.1	43.4	0.74
CRBH 9016	90	130	108	16	0.6	98	122	33.1	46.8	0.81
CRBH 10020	100	150	122	20	0.6	110	140	50.9	72.2	1.45
CRBH 11020	110	160	133	20	0.6	120	150	52.4	77.4	1.56
CRBH 12025	120	180	148.3	25	1	132	168	73.4	108	2.62
CRBH 13025	130	190	158	25	1	142	178	75.9	115	2.82
CRBH 14025	140	200	168	25	1	152	188	81.9	130	2.96
CRBH 15025	150	210	180	25	1	162	198	84.3	138	3.16
CRBH 20025	200	260	230	25	1	212	248	92.3	169	4
CRBH 25025	250	310	279.5	25	1.5	262	298	102	207	4.97
