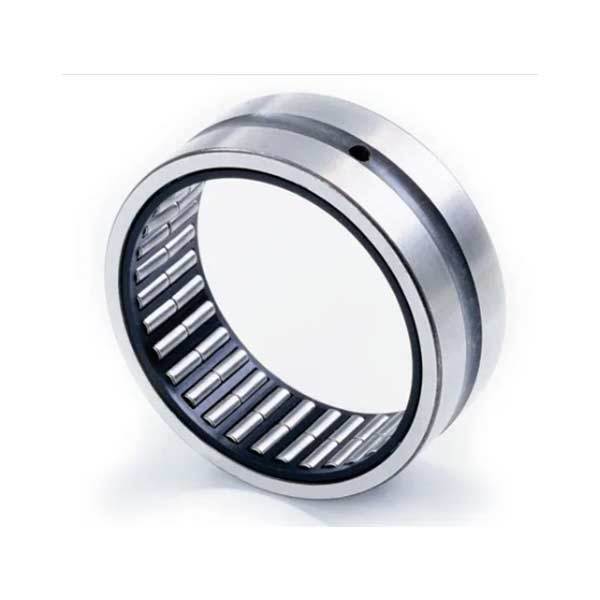

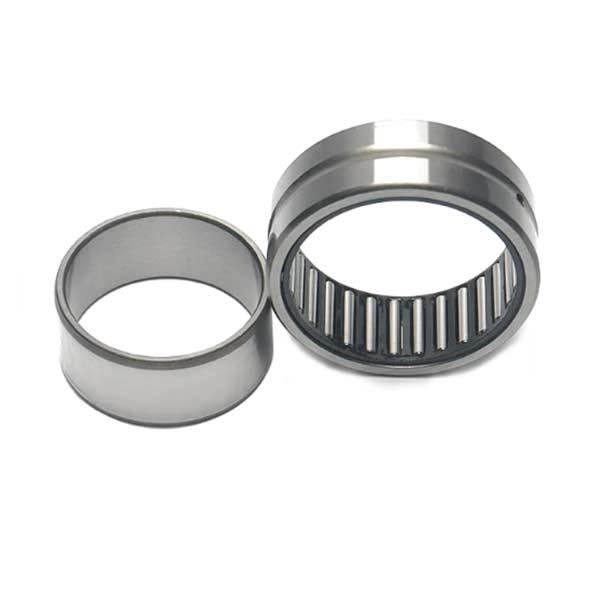

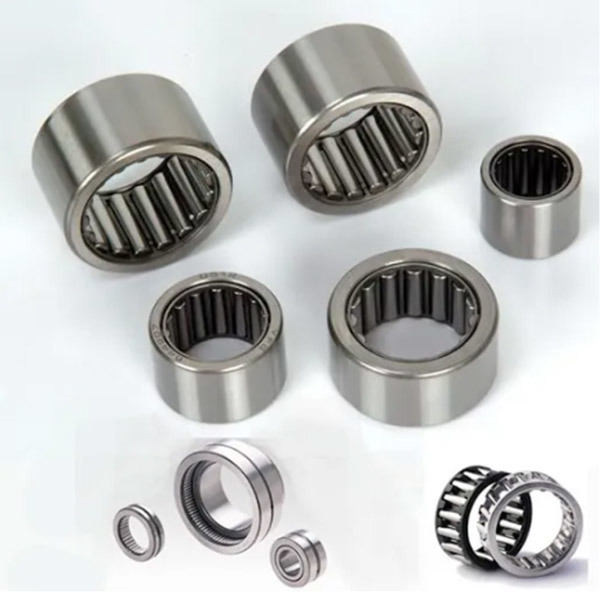

Needle bearing is a roller bearing with cylindrical rollers. Compared with its diameter, the rollers are thin and long. This roller is called needle roller. Although it has a small section, the bearing still has a high load bearing capacity. The needle roller bearing is equipped with thin and long rollers (roller diameter D ≤ 5mm, L/D ≥ 2.5, L is the roller length), so the radial structure is compact. When its inner diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest, which is especially suitable for supporting structures with limited radial installation size.

Category：

Needle Roller Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Related Products
Inquire Now

Key words：

RNA NK series Needle bearing

RNA, NK series Needle bearing

Needle bearing



Needle bearing is a roller bearing with cylindrical rollers. Compared with its diameter, the rollers are thin and long. This roller is called needle roller. Although it has a small section, the bearing still has a high load bearing capacity. The needle roller bearing is equipped with thin and long rollers (roller diameter D ≤ 5mm, L/D ≥ 2.5, L is the roller length), so the radial structure is compact. When its inner diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest, which is especially suitable for supporting structures with limited radial installation size.

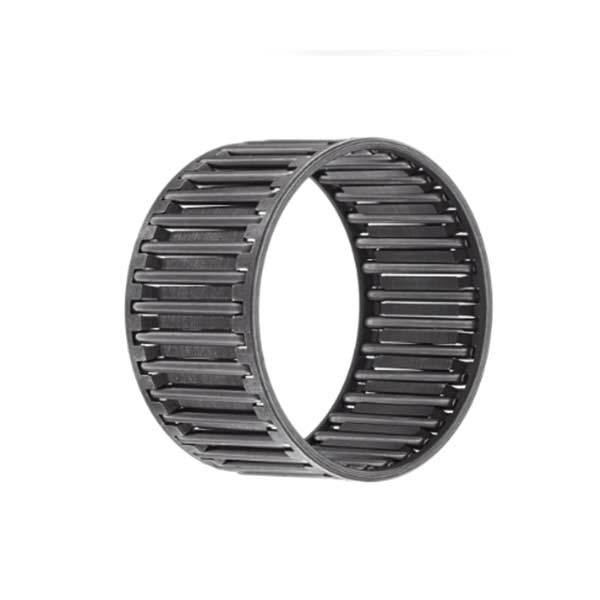

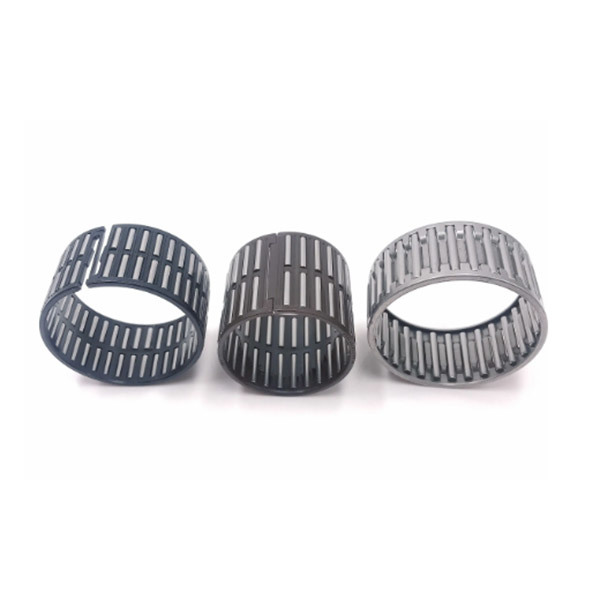

Bearing or needle roller and cage assembly without inner ring can be selected according to different applications. At this time, the journal surface and shell hole surface matched with the bearing are directly used as the inner and outer rolling surfaces of the bearing. In order to ensure the same load capacity and operating performance as the bearing with ring, the hardness, machining accuracy and surface quality of the raceway surface of the shaft or outer shell hole should be similar to the raceway of the bearing ring. This bearing can only bear radial load.



Product parameter





Bearing Number Dimensions （mm）
RNA4822A 120×140×30
RNA49/8A 10×19×11
RNA49/9A 12×20×11
RNA4900A 14×22×13
RNA4901A 16×24×13
RNA4902A 20×28×13
RNA4902AF 20×28×13
RNA4903A 22×30×13
RNA4904A 25×37×17
RNA4905A 30×42×17
RNA4906A 35×47×17
RNA4907A 42×55×20
RNA4907A/AS4 42×55×20
RNA4907AF1 42×55×20
RNA4908A 48×62×22
RNA4909A 52×68×22
RNA4909AF1 52×68×22
RNA4910A 58×72×22
RNA4910A/YB2 58×72×22
RNA4911A 63×80×25
RNA4912A 68×85×25
RNA4913A 72×90×25
RNA4914A 80×100×30
RNA4915A 85×105×30
RNA4916A 90×110×30
RNA4917A 100×120×35
RNA4918A 105×125×35
RNA4919A 110×130×35
RNA4920A 115×140×40
RNA4922A 125×150×40
RNA4924A 135×165×45
RNA59/7A 10×17×15
RNA59/8A 12×19×15
RNA5900A 14×22×16
RNA6901A 16×24×22
RNA6901 16×24×22
RNA6902 20×28×23
RNA6903 22×30×23
RNA6904 25×37×30
RNA69/22 28×39×30
RNA6905 30×42×30
RNA69/28 32×45×30
RNA6906 35×47×30
RNA6901AF1 16×24×22
RNA6902A 20×28×23
RNA6903A 22×30×23
RNA6904A 25×37×30
RNA6905A 30×42×30
RNA6905ATN1 30×42×30
RNA6905AF1A 30×42×30
RNA6906A 35×47×30
RNA49/7X2A 10×17×12
RNA4905X2A 30×42×20
RNA49/38X3A 45×55×22
RNA4908X2A 45×62×24
RNA4908X3A
RNA4952X3A 55×68×25
RNA59/7X2A 10×17×15
RNA59/8X2A 12×19×15
RNA5902X3A 19×27×16
RNA5904X3A 25×35×25
RNA5908X3A 50×65×34
RNA59/38X3A 50×65×35
RNA6903X2A/AS1 45×55×32
RNA5001X3A 16×27×25
RNA5001X2A 20×28×20
RNA5002X2A 18×32×25
RNA5003X2A 22×35×25
RNA5006X3A 45×55×32
RNA5007X1A 50×64×36
RNA6001X2A 20×28×25
RNA6001X2L1A 20×28×25
RNA6002X1A 18×33×30
RNA6002X1ATN1 18×33×30
RNA6/37A 37×52×22
NK16/16A 16×24×16
NK16/20A 16×24×20
NK16/20AF1 16×24×20
NK14/16A 14×22×16
NK20/20A 20×28×20
NK20/25A 20×28×25
NK22/20A 22×30×20
NK25/16A 25×33×16
NK25/20A/ASI 25×33×20
NK32/20A 32×42×20
NK55/25A 55×68×25
RNA2913/YA4 75×90×16
RNA4822 120×140×30
RNA4824 130×150×30
RNA4826 140×165×35
RNA4838M/YA5 210×240×50
RNA49/8 10×19×11
RNA4900 14×22×13
RNA4901 16×24×13
RNA4902 20×28×13
RNA4903 22×30×13
RNA4904 25×37×17
RNA49/22 28×39×17
RNA4905 30×42×17
RNA49/28 32×45×17
RNA4906 35×47×17
RNA49/32 40×52×20
RNA4907 42×55×20
RNA4908 48×62×22
RNA4909 52×68×22
RNA4910 58×72×22
RNA4911 63×80×25
RNA4912 68×85×25
RNA4913 72×90×25
RNA4914 80×100×30
RNA4915 85×105×30
RNA4916 90×110×30
RNA4917 100×120×35
RNA4918 105×125×35
RNA4919 110×130×35
RNA4920 115×140×40
RNA4922 125×150×40
RNA4924 135×165×45
RNA4926 150×180×50
RNA4928 160×190×50
RNA4002 20×32×17
RNA4004 26×42×22
RNA4004/S0 26×42×22
RNA4005 34×47×22
RNA4006 40×55×25
RNA4007/YA4 45×62×27
RNA4007 46×62×27
RNA4008 52×68×28
RNA4009 57×55×30
RNA4010 62×80×30
RNA4011 70×90×35
RNA48/9X2 17×25×16
RNA4805X3 32×38×11
RNA4811X2 60×72×16
RNA6804X3 25×32×28
RNA6807X3 38×48×25
RNA49/8X2 12×19×12
RNA49/8X3 10×17×12
RNA49/8X3TN 10×17×12
RNA49/9X3 12×19×12
RNA4907X2 40×55×22
RNA49/42X3 50×65×25
RNA4909X3 50×65×25
RNA49/52X3 60×72×25
RNA6901X3 16×22×20
RNA69/22X3 28×40×32
RNA6906X1 35×57×30
RNA6910X3 56×70×50
RNA6910X3-1 56×70×45
RNA3002X2 20×32×12
RNA50/28X1 35×51×32
RNA5007 40.7×62×36
RNA5007X3 42×65×32
RNA5008X3 48.3×72×40
RNA6/15 15×25×12
RNA6/17 17×30×12
RNA6/18 18×26×20
RNA6/19.2 19.2×30×23
RNA6/24 24×42.86×25.6
RNA6/26P5 26×60×34
RNA6/28 28×45×19
RNA6/28X1-3 27.1×42×22
RNA6/32 32×50×35
RNA6/34ASI 34×50×35
RNA6/34.4 34.4×52×32
RNA6/445 44.5×58.7×19
RNA6/76.2 76.2×95.25×44.45
NK6/12TN 6×12×12
NK8/12P6S1 8×15×12
NK8/12TN 8×15×12
NK8/16TN 8×15×16
NK9/12 9×16×12
NK14/16 14×22×16
NK14/20 14×22×20
NK15/12 15×25×12
NK15/16 15×23×16
NK15/20 15×23×20
NK16/16 16×24×16
NK16/20 16×24×20
NK16/22 16×24×22
NK17/16 17×25×16
NK18/20 18×26×20
NK19/16 19×27×16
NK19/20 19×27×20
NK20/12 20×33×12
NK20/16 20×28×16
NK20/20 20×28×20
NK21/20 21×29×20
NK22/16 22×30×16
NK22/20 22×30×20
NK22/20TN 22×30×20
NK24/16 24×32×16
NK24/20 24×32×20
NK25/16 25×33×16
NK25/20 25×33×20
NK25/30 25×33×30
NK26/16 26×34×16
NK26/20 26×34×20
NK28/20 28×37×20
NK28/30 28×37×20
NK29/20 29×38×20
NK29/30 29×38×30
NK30/20 30×40×20
NK30/30 30×40×30
NK32/20 32×42×20
NK32/30 32×42×30
NK35/20 35×45×20
NK35/30 35×45×30
NK37/20 37×47×20
NK37/30 37×47×30
NK38/20 38×48×20
NK38/30 38×48×30
NK40/20 40×50×20
NK40/30 40×50×30
NK42/20 42×52×20
NK42/30 42×52×30
NK43/20 43×53×20
NK43/30 43×53×30
NK45/20 45×55×20
NK45/30 45×55×30
NK45/40 45×65×40
NK45/54 45×60×54
NK47/20 47×57×20
NK47/30 47×57×30
NK50/25 50×62×25
NK50/27/YA 50×67×27
NK50/35 50×62×35
NK55/25 55×68×25
NK55/35 55×68×35
NK60/25 60×72×25
NK60/35 60×72×35
NK65/25 65×78×25
NK65/35 65×78×35
NK65/35/ASI 65×78×35
NK68/25 68×82×25
NK68/35 68×82×35
NK70/25 70×85×25
NK70/25/YA 70×85×25
NK70/35 70×85×35
NK73/25 73×90×25
NK73/35 73×90×35
NK75/25 75×92×25
NK75/35 75×92×35
NK80/25 80×95×25
NK80/35 80×95×35
NK80/60 80×170×60
NK85/25 85×105×25
NK85/35 85×105×35
NK90/25 90×110×25
NK90/35 90×110×35
NK95/26 95×115×26
NK95/36 95×115×36
NK100/26 110×120×26
NK100/36 110×120×36
NK105/26 105×125×26
NK105/36 105×125×36
NK110/30 110×130×30
NK110/40 110×130×40
RNAP4005X3 30×46×23
RNAP6/26 26×60×34
RNAP6/32 35×60×34
RNA4912B 70×85×20
RNA4004B 27.1×42×22
RNA50/28B 34.4×52×32
RNA5007B 40.7×62×36
RNA5900X3B 14×21×17
RNA5006X3B 38×56×38
RNA6801X2B 15×21×17
RNA6902X1B 19.2×30×23
RNA69/42X1B 48.3×72×40
RNA6/175X3Q1 175×245×160
