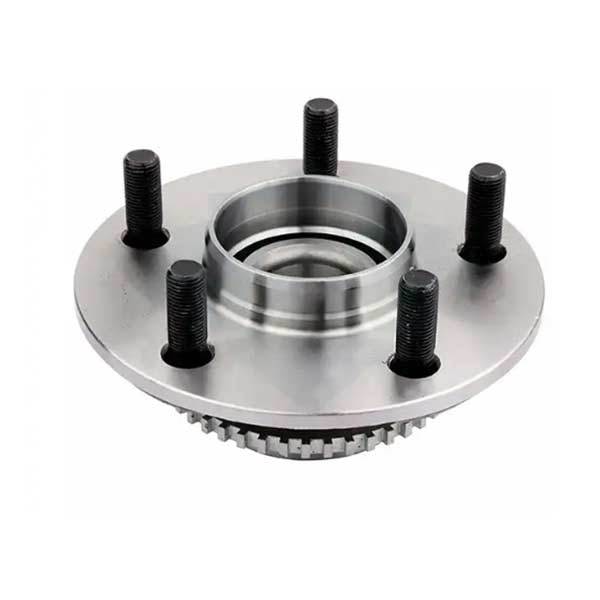

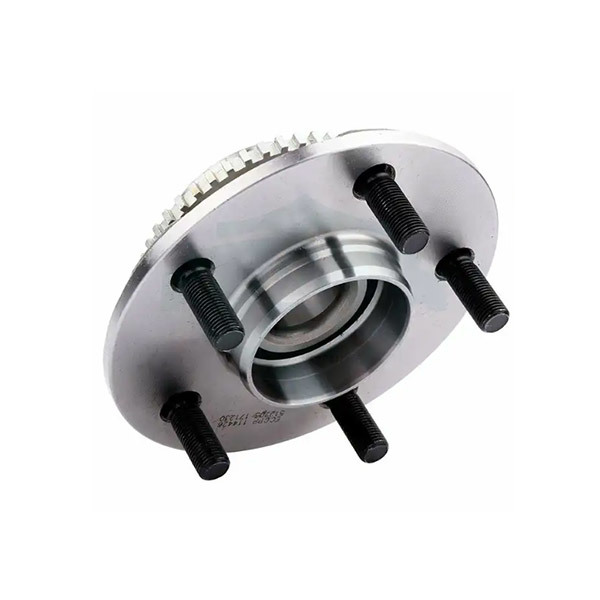

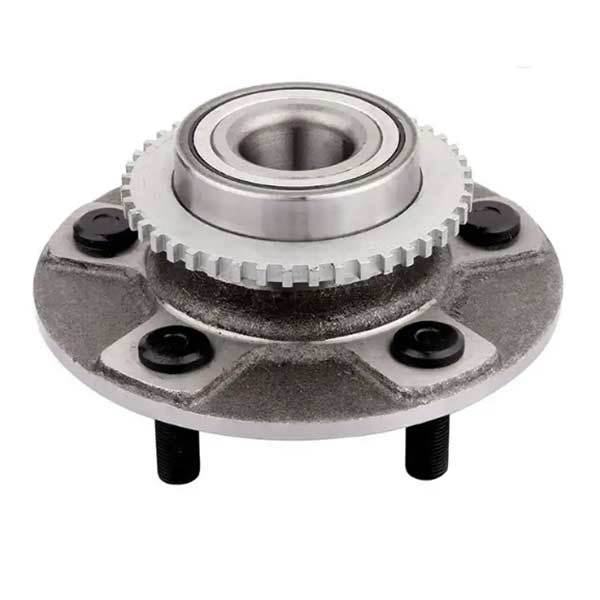

The third generation hub bearing unit

Category：

Wheel Hub Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Related Products

Inquire Now

Key words：

The third generation hub bearing unit

Wheel Hub Bearings

The main function of hub bearing is to bear weight and provide accurate guidance for the rotation of the hub. It bears both axial load and radial load, and is a very important component. The traditional automobile wheel bearing is composed of two sets of tapered roller bearings or ball bearings. The installation, oiling, sealing and clearance adjustment of the bearings are carried out on the automobile production line. This structure makes it difficult to assemble in the automobile factory, with high cost and poor reliability. In addition, when the automobile is maintained at the maintenance point, the bearing needs to be cleaned, oiled and adjusted. Hub bearing unit is developed on the basis of standard angular contact ball bearing and tapered roller bearing. It combines two sets of bearings as a whole. It has the advantages of good assembly performance, can omit clearance adjustment, light weight, compact structure, large load capacity, can be filled with grease in advance for sealing bearings, can omit external hub seal and is free from maintenance. It has been widely used in cars, and has the trend of gradually expanding its application in trucks.

Product parameter

产品型号	外型尺寸 DIMENSION（mm）
MODEL	d	F	B	T	E	M	G
HUB188-6	30	148	48	66.7	66	59	114.3	68
BAFB633903B	30	130	43	65	65	59	108	77
HUB042	30	148	48	64.5	59	52	100	72
HUB042-32	30	148	48	64.5	66	52	114.3	72.8
BAF0095	30	120	37	61.5	57	51.85	100	69.5
BAF4087B	30	142	55	82	56.4	48	114.3	68
BAF0006D	30	122	46	70	57	48	100	67
DACF1005C	31	120	40	61	57	50.5	100	73.8
BAFB309971AC	31	120	41	61	57	50.5	100	72
HUB059	31.76	108	52	72	63	57.8	108	74.9
985149	31.76	139	52	72	63	57.8	108	74.9
44450E	32	128	34	58	64.94	60	107.74	81
QH678	32	128	34	73.1	96	60	107.74	75.5
BABF446451	32	128	34	58	69.94	60	108	76
TGB12894	32	129	34	58	69.94	60	107.74	82
TGB401755S06	32	129	38	59.25	65	59.5	107.74	73
52710-2D115	32	139	45	64.5	66.95	58	114.3	73.9
HUB066	33	139.5	51	63.5	66.9	58	114.5	70.9
DACF1034AR-2	33	140.1	47	78.6	66.97	58.67	114.3	71.72
DACF1081L	34	139	42	64.5	67	58	114.3	74
DACF1036A	34	139.5	42	70	64	58	114.3	75
513092	34.5	139	52	66	63	58	108	80
513115	34.5	139	52	66	70.5	58	114.3	80
DACF1018L	35	137	45	74	65	57	110	81
DACF1023D	35	137	45	9.5	65	53.3	108	81
DACF1063A	36	140	50	71	67	59	114.3	79
36BWK02	36	139.9	62	77	67	60	114	84.5
DACF1033K	37	139	45	64	72.5	66	120	84
DACF1033K-1	37	139	45	64	72.5	66	120	80
513014	37	151.3	52	73	70.5	64	114.3	78
BAF-4116E	37	151.5	52	76	70.5	64	114.3	78
DACF1074CR	38	146.5	52	77	70	64	114.3	76.8
43BWD03D	43	一	44	44	82.8	一	102	86
43BWK01B	43	65.4	56	56	84	一	109.8	82.6
513089HUB	43	101.8	44	52.7	79.9	74.8	102	83
BAF-0047	43	-	37	40.25	82.5	77	107	82.5
513093	43	一	49	47.5	82.8	73.8	102	83.4
580494C	45	126.2	41	41	89.9	80.3	106	89
580494	45	124	41	41	90	-	106	88
