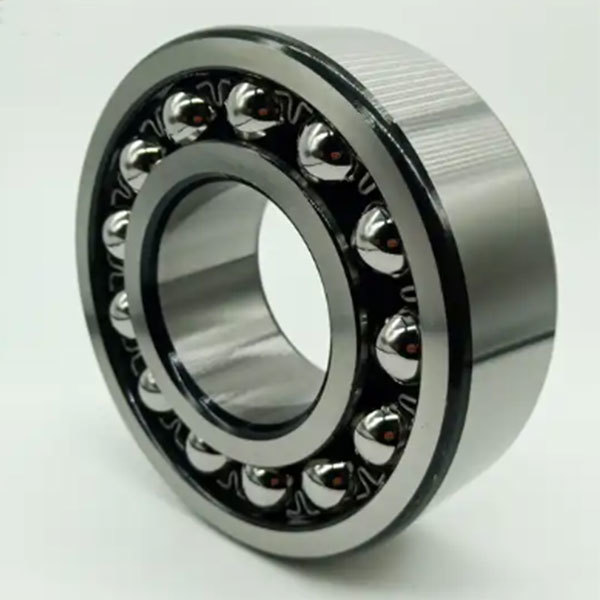

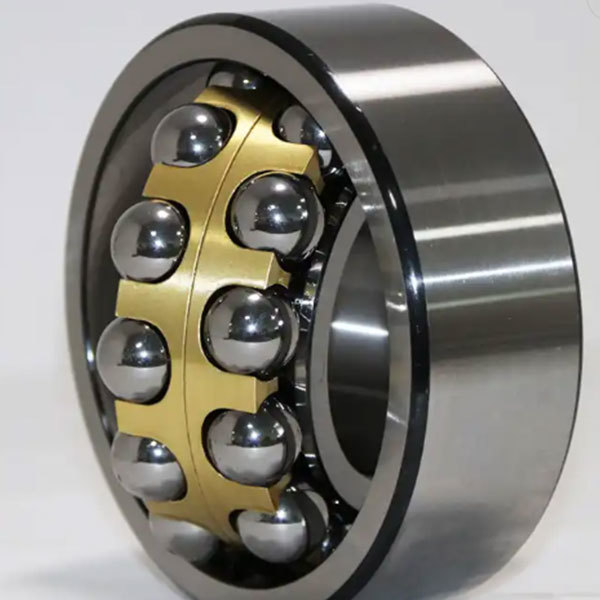

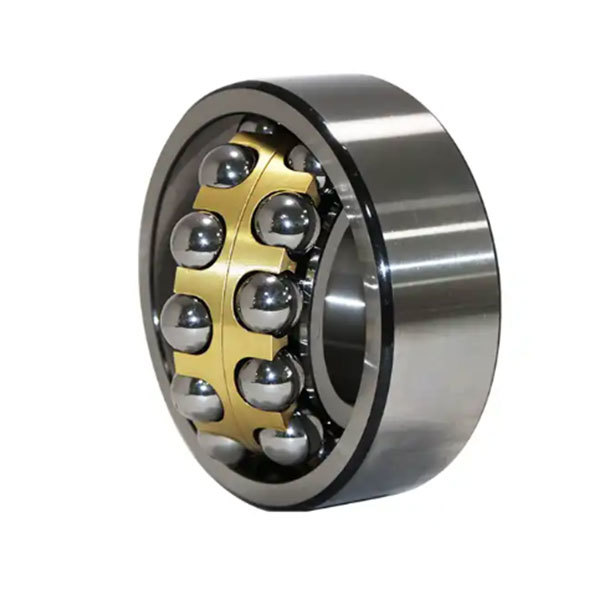

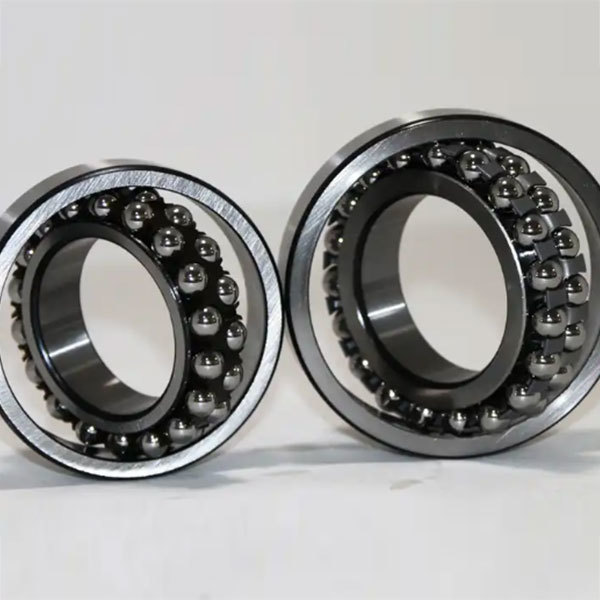

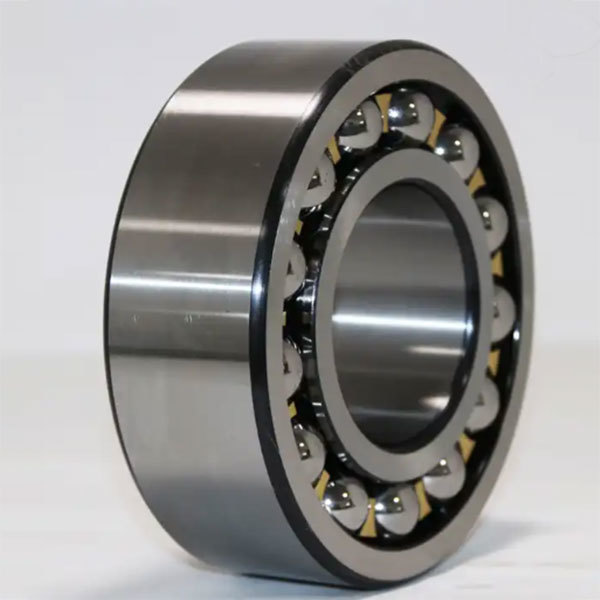

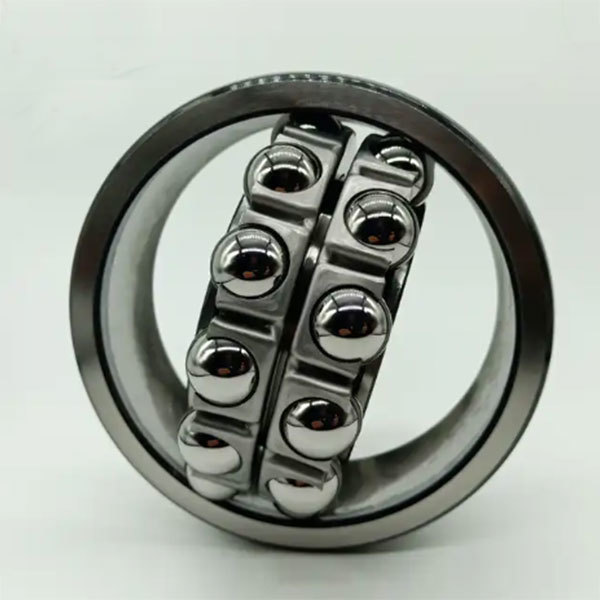

Self-aligning ball bearing is a bearing equipped with spherical ball between the inner ring of two raceways and the outer ring of spherical raceways. The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same self-aligning function as the self-aligning ball bearing. When the shaft and shell are bent, they can be adjusted automatically without increasing the bearing burden. Self-aligning roller bearing can bear radial load and axial load in two directions. Large radial load capacity, suitable for heavy load and impact load. The inner diameter of the inner ring is a bearing with a tapered hole, which can be installed directly. Or install it on the cylindrical shaft with a set sleeve and a disassembly cylinder. The cage is made of steel plate stamping cage, polyamide forming cage and copper alloy turning cage.

Category：

Self-aligning Ball Bearings

Email:Alex@chtzb.com

Whatsapp: +86-19806081000

Related Products
Inquire Now

Key words：

1200 series self-aligning ball bearings

1200 series self-aligning ball bearings

Self-aligning ball bearings



Self-aligning ball bearing is a bearing equipped with spherical ball between the inner ring of two raceways and the outer ring of spherical raceways.
The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same self-aligning function as the self-aligning ball bearing. When the shaft and shell are bent, they can be adjusted automatically without increasing the bearing burden. Self-aligning roller bearing can bear radial load and axial load in two directions. Large radial load capacity, suitable for heavy load and impact load. The inner diameter of the inner ring is a bearing with a tapered hole, which can be installed directly. Or install it on the cylindrical shaft with a set sleeve and a disassembly cylinder. The cage is made of steel plate stamping cage, polyamide forming cage and copper alloy turning cage.





Product parameter




轴承型号 基本尺寸／mm 基本额定载荷／kN 极限转速（r／min） 重量／kg
d D T Cr动 Cor静 脂 油 W≈
1200 10 30 9 5.5 1.2 23000 28000 0.034
1201 12 32 10 5.6 1.25 21000 26000 0.04
1202 15 35 11 7.45 1.75 18000 22000 0.049
1203 17 40 12 7.9 2 16000 20000 0.073
1204 20 47 14 9.9 2.6 14000 17000 0.12
1205 25 52 15 12 3.3 12000 14000 0.141
1206 30 62 16 15.6 4.65 9900 12000 0.22
1207 35 72 17 15.8 5.1 8500 10000 0.323
1208 40 80 18 19.2 6.5 7500 9200 0.417
1209 45 85 19 21.8 7.35 7000 8500 0.465
1210 50 90 20 22.7 8.1 6500 7900 0.525
1211 55 100 21 26.8 10 5800 7100 0.705
1212 60 110 22 30.2 11.5 5200 6400 0.9
1213 65 120 23 31 12.5 4800 5800 1.15
1214 70 125 24 34.6 13.8 4600 5700 1.26
1215 75 130 25 38.8 15.7 4300 5300 1.36
1216 80 140 26 39.8 17 4000 4900 1.67
1217 85 150 28 49.2 20.8 3800 4600 2.07
1218 90 160 30 56.8 23.4 3500 4300 2.52
1219 95 170 32 57 24.3 3300 4000 3.1
1220 100 180 34 69 29.7 3100 3800 3.7
1221 105 190 36 77 34 2900 3600 4.37
1222 110 200 38 80.2 35.2 2800 3400 5.15
1224 120 215 42
1226 130 230 46
1228 140 250 50
1230 150 270 54
